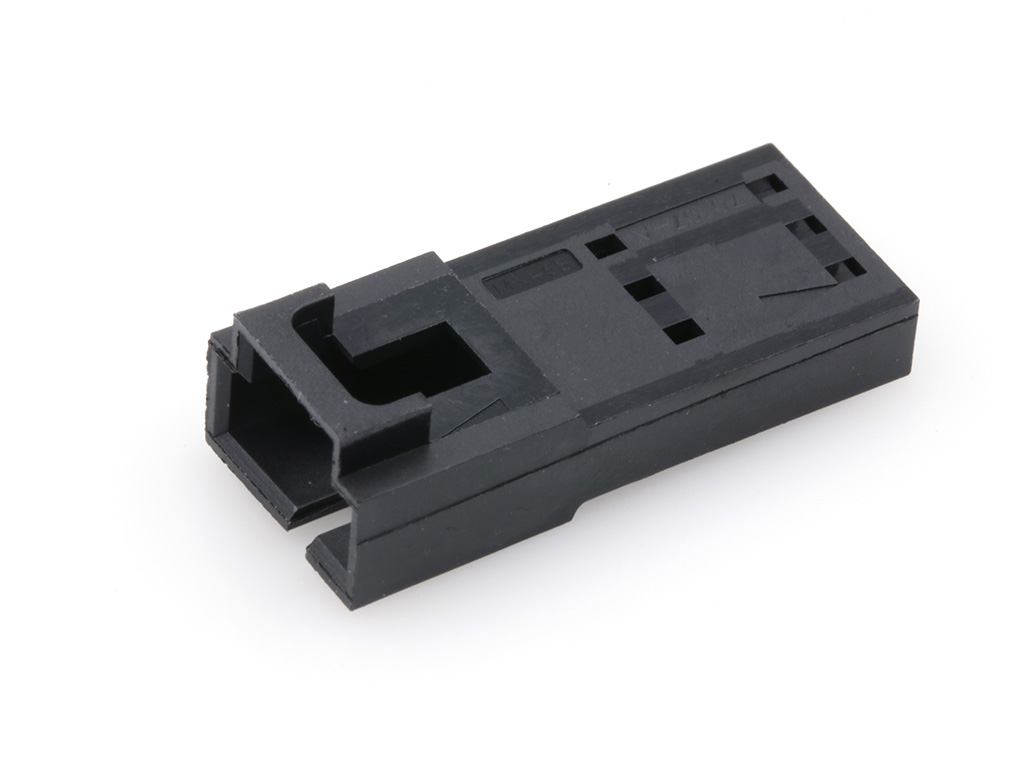

701070002 SL by Molex
SL Wire-to-Wire Crimp Housing, Single Row, Version A, without Mounting Ears, 3 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
70107-0002,
0701070002 |
Where to Buy
Prices starting from US$0.21
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.21
|
80,077
in stock
|
Buy Now |
|
element14
from US$0.38
|
51,187
in stock
|
Buy Now |
|
Farnell
from US$0.37
|
38,714
in stock
|
Buy Now |
|
RS
from US$0.49
|
14,720
in stock
|
Buy Now |
|
TTI Americas
from US$0.21
|
13,219
in stock
|
Buy Now |
|
Newark Electronics
from US$0.21
|
8,745
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.25
|
7,500
in stock
|
Buy Now |
|
TME
from US$0.34
|
5,231
in stock
|
Buy Now |
|
|
RS Americas
from US$0.41
|
1,641
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.46
|
483
in stock
|
Buy Now |
|
Conrad
from US$0.54
|
483
in stock
|
Buy Now |
|
EME
from US$0.36
|
350
in stock
|
Buy Now |
|
Offical Electronic
-
|
7,173
in stock
|
Buy Now |
|
Rutronik
from US$0.36
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.27
|
0
in stock
|
Buy Now |
|
Compona
from US$0.31
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.27
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.21
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SL |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 3 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 0.670/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SL WTW CONN SR WO/MTGE OPT A 3 | Heilind Americas |
| CONNECTOR HOUSING, PLUG, 3POS | element14 |
| Molex 70107-0002 Connector Housing | RS |
| SL 2.54MM WTW HSG 1X03P | TTI Americas |
| Connector Housing, Plug, 3Pos | Newark Electronics |
| 2.54MM SL W-T-W CRIMP HSG 3CKT | TTI Europe |
| Connector: wire-wire | TME |
| CONN. RECT. HOUSING CRP 2.54MM PITCH 3 CIR. SL W2W MALE SNGL W/O EARS | RS Americas |
| Molex 701070002 SL Crimp Housing 3-pin 2.54mm Pitch Black 1Pc Bag | Rapid Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 3 Rastermaß: 2.54 mm 701070002 1 St. Bag | Conrad |
| 03P CONNECTOR 1 ROW VERSION A | Rutronik |
| Connector Housing, Single Row, Version A, SL 70107, Plug, 3 Ways, 2.54 mm | Avnet America |
| MOLEX 70107-0002 Housing SL WtW 3p Crimp | Compona |
