702465001 C-Grid by Molex

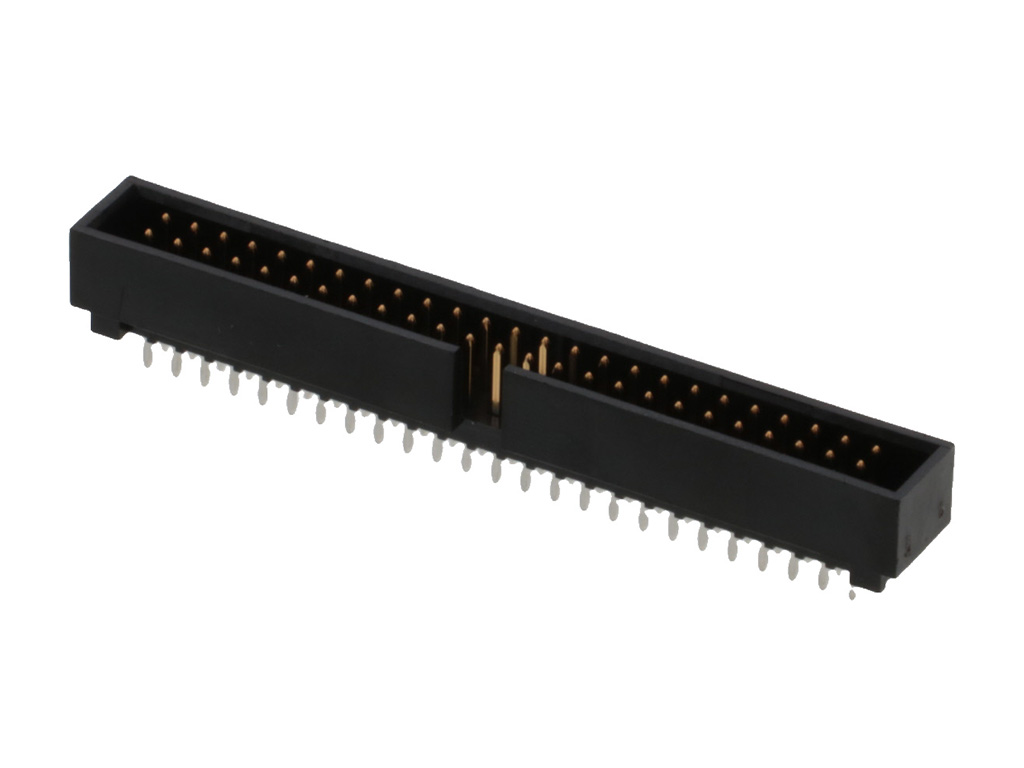

2.54mm Pitch C-Grid Header, Low Profile, Dual Row, Vertical, Shrouded, 50 Circuits, 0.38µm Gold (Au) Selective Plating, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
70246-5001,
0702465001 |
Where to Buy
Prices starting from US$2.91
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$4.39
|
255
in stock
|
Buy Now |
|
TME
from US$3.10
|
255
in stock
|
Buy Now |
|
Conrad
from US$4.86
|
255
in stock
|
Buy Now |
|
Farnell
from US$5.23
|
230
in stock
|
Buy Now |
|
RS
from US$4.51
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.91
|
0
in stock
|
Buy Now |
|
EME
from US$3.12
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 250V DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 50 |
| Circuits Maximum | 50 |
| Color Resin | Black |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Mounting Style | Through Hole |
| Net Weight | 5.742/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.43mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.905µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +120°C |
| Termination Interface Style | Through Hole |
