705430109 SL by Molex

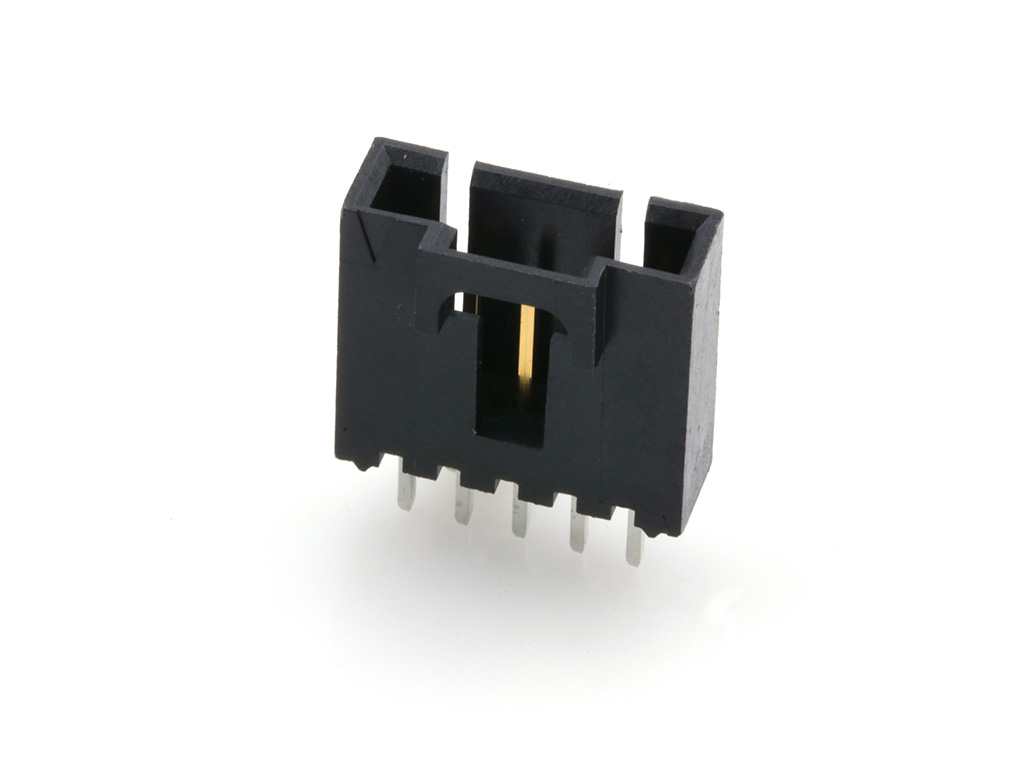

2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 5 Circuits, 0.76µm Gold (Au) Selective Plating, Matte Tin (Sn) Tail Plating
