714361464 1.00mm Mezzanine (IEEE 1386) by Molex

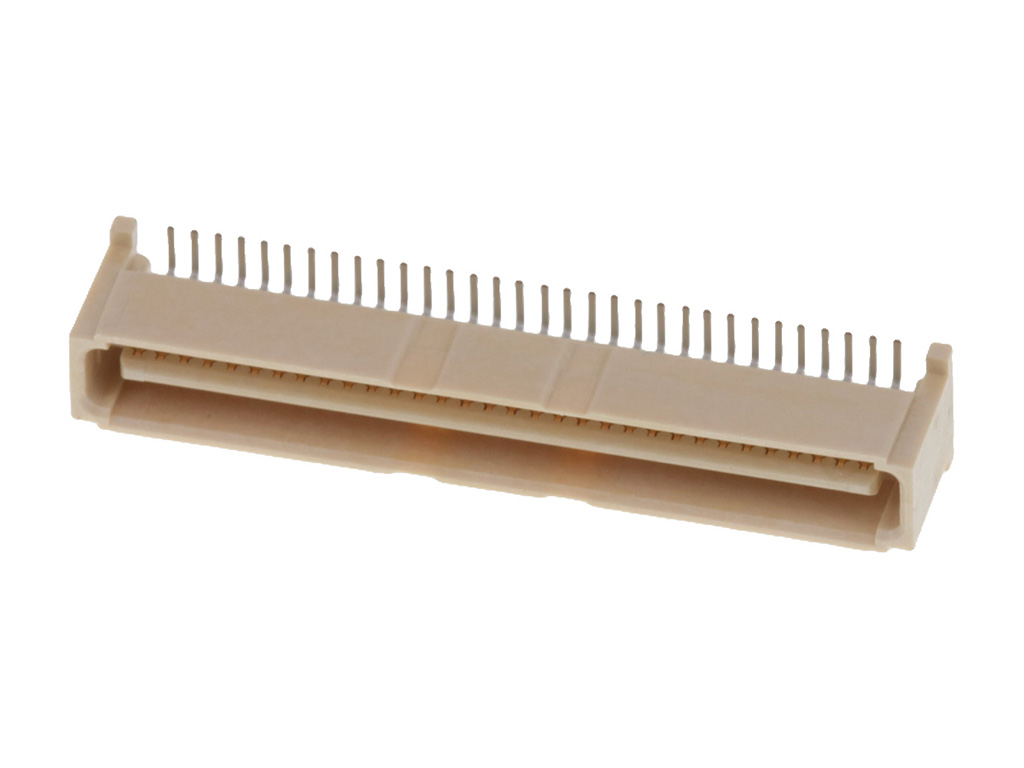

1.00mm Mezz (IEEE 1386) Plug, Surface Mount, Dual Row, Vertical Stacking, 64 Circuits, 7.35mm Unmated Height, with PCB Locator Pegs, with Robotic Placement Metal Cap, Embossed Tape on Reel Packaging
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
71436-1464,
0714361464 |
Where to Buy
Prices starting from US$4.17
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$8.10
|
1,680
in stock
|
Buy Now |
|
Farnell
from US$6.46
|
1,512
in stock
|
Buy Now |
|
Newark Electronics
from US$6.11
|
840
in stock
|
Buy Now |
|
TME
from US$4.25
|
840
in stock
|
Buy Now |
|
TTI Americas
from US$5.81
|
840
in stock
|
Buy Now |
|
Avnet Asia
-
|
1,050
in stock
|
Buy Now |
|
RS
from US$6.60
|
0
in stock
|
Buy Now |
|
|
Avnet America
from US$4.17
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$6.80
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$5.07
|
0
in stock
|
Buy Now |
|
Sager
from US$5.87
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 1.00mm Mezzanine (IEEE 1386) |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 64 |
| Circuits Maximum | 64 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Mated Height | 11.00mm, 14.00mm, 9.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.300/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.00mm |
| Pitch Mating Interface | 1.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.905µm |
| Polarized To Mating Part | No |
| Robotic Placement | Pick and Place Cap |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 64 Rastermaß: 1 mm 714361464 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, HDR, 64POS, 2ROW, 1MM | Farnell |
| Stacking Board Connector, 71436 Series, Plug, 1 Mm, 64, Surface Mount, Gold Plated Contacts |Molex 71436-1464 | Newark Electronics |
| Connector: PCB to PCB | TME |
| 1.00MM PLG 02X32P VT SMT W/CAP | TTI Americas |
| Conn IEEE 1386 PL 64 POS 1mm Solder ST SMD Embossed T/R | Avnet Asia |
| Molex 71436-1464 Connector | RS |
| PLUG 1.0MM MEZZ IEEE 1386 ,SMT, VERT, 64W | RS Americas |
| 1.00MM MEZZ (IEEE 1386) PLUG | TTI Europe |
| Board to Board & Mezzanine Connectors 1.00MM PLG 02X32P VT SMT W/CAP | Sager |
