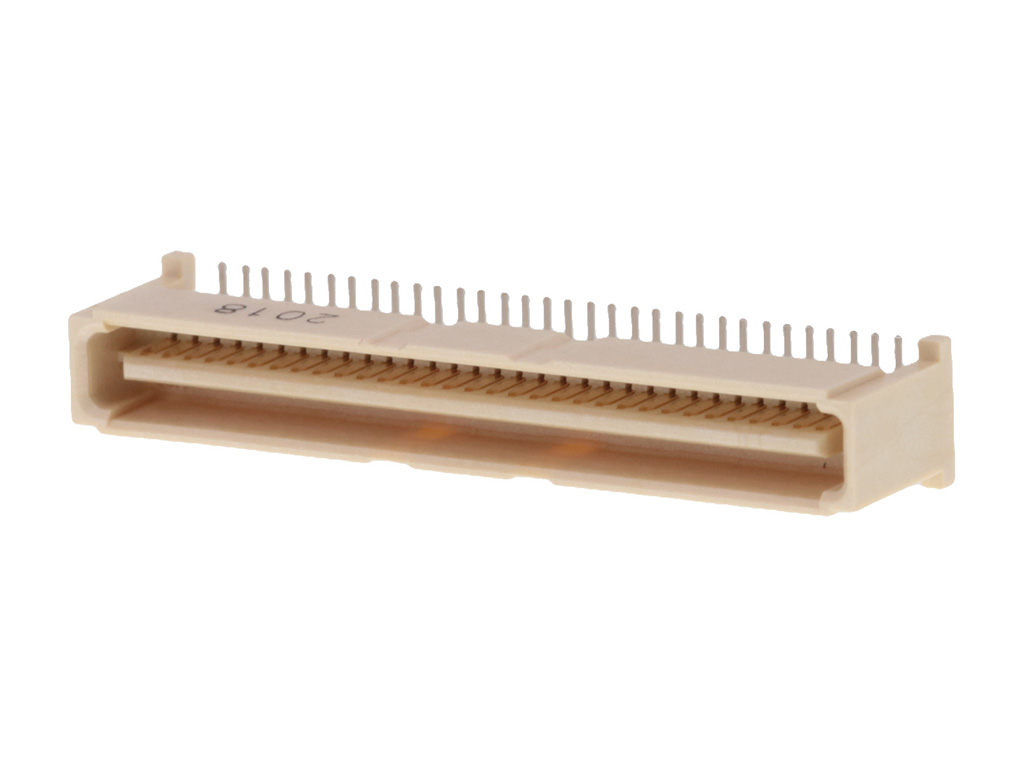

714362864 1.00mm Mezzanine (IEEE 1386) by Molex
1.00mm Mezz (IEEE 1386) Plug, Surface Mount, Dual Row, Vertical Stacking, 64 Circuits, 8.35mm Unmated Height, without PCB Locator Pegs, with Robotic Placement Metal Cap, 0.76µm Gold (Au) Selective Plating, Embossed Tape on Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
71436-2864,
0714362864 |
Where to Buy
Prices starting from US$3.10
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$5.26
|
2,660
in stock
|
Buy Now |
|
|
TTI Americas
from US$5.87
|
185
in stock
|
Buy Now |
|
Heilind Americas
from US$9.13
|
3
in stock
|
Buy Now |
|
Avnet Abacus
-
|
1,900
in stock
|
Buy Now |
|
RS
from US$5.75
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$6.09
|
0
in stock
|
Buy Now |
|
TME
from US$4.01
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$6.33
|
0
in stock
|
Buy Now |
|
element14
from US$5.71
|
0
in stock
|
Buy Now |
|
Conrad
from US$3.10
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.12
|
0
in stock
|
Buy Now |
|
Farnell
from US$5.72
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$4.95
|
0
in stock
|
Buy Now |
|
EME
from US$4.11
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 1.00mm Mezzanine (IEEE 1386) |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 64 |
| Circuits Maximum | 64 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Mated Height | 10.00mm, 12.00mm, 13.00mm, 15.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.500/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.00mm |
| Pitch Mating Interface | 1.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.905µm |
| Polarized To Mating Part | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.00 MM MEZZANINE B-TO-B PLUG | TTI Europe |
| 1.00MM PLG 02X32P VT SMT W/CAP | TTI Americas |
| CUT TAPE MEZZANINE 1MM BTB PLG 30 | Heilind Americas |
| Conn Board to Board PL 64 POS 1mm Solder ST SMD Embossed T/R | Avnet Abacus |
| Molex 71436-2864 Connector | RS |
| Stacking Conn, Plug, 64Pos, 2Row, 1Mm | Newark Electronics |
| Contact | TME |
| PLUG 1.0MM MEZZ IEEE 1386 ,SMT, VERT, 64W | RS Americas |
| MEZZANINE CONN, HEADER, 64POS, 2ROW, 1MM | element14 |
| Molex Mezzanine-Steckverbinder 71436-2864 1 St. Tape on Full reel | Conrad |
| MEZZANINE 1MM BTB PLG 30 SAU | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 714362864?
Additional datasheets, footprints and schematics for 714362864 are listed on our Part Details page. You can also find images and similar parts to 714362864 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 714362864 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 714362864 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 714362864 fall under?
The 714362864 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 714362864 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 714362864 you can contact the distributor directly for product support, shipping queries etc.
Is the 714362864 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 714362864 have stock available?
Authorised distributors including TTI Europe, TTI Americas, Heilind Americas, Avnet Abacus and RS have stock available or on a lead time for 714362864.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 714362864 often in real-time on the comparison pages.
What if I can't find stock of 714362864?
You can fill out our help required form which you can use to request a quote for 714362864 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
