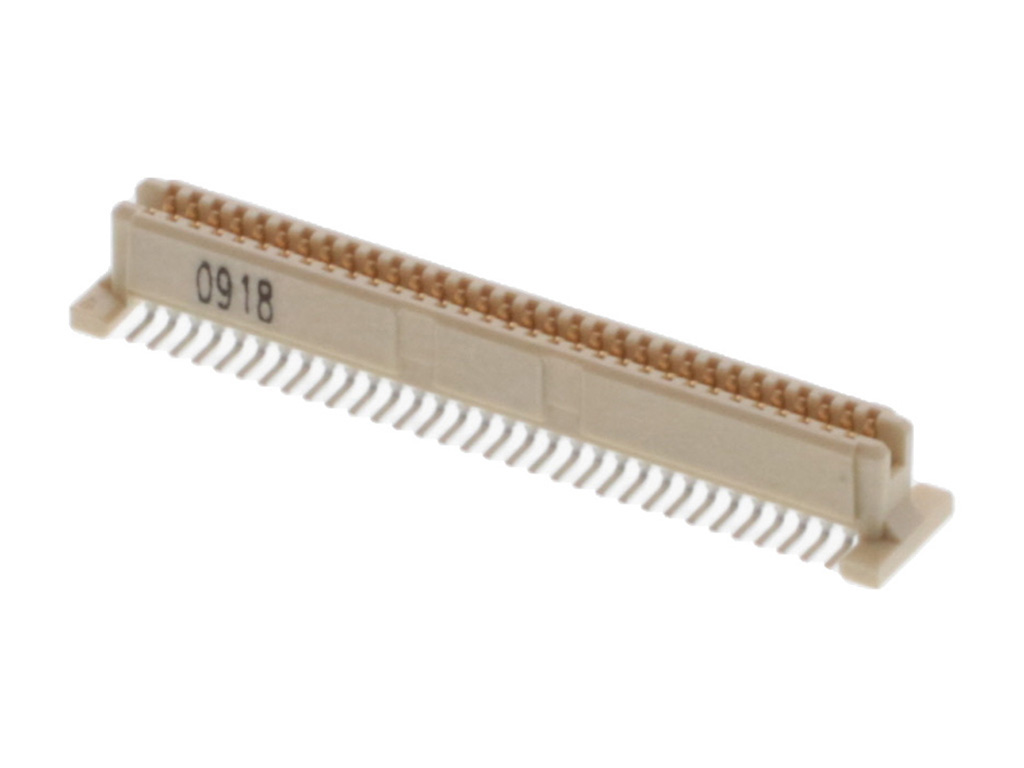

714390864 1.00mm Mezzanine (IEEE 1386) by Molex
1.00mm Mezz (IEEE 1386) Receptacle, Surface Mount, Dual Row, Vertical Stacking, Embossed Tape on Reel, 0.76µm Gold (Au), 64 Circuits Pick and Place Cap
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
71439-0864,
0714390864 |
Where to Buy
Prices starting from US$2.53
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$4.71
|
2,750
in stock
|
Buy Now |
|
Conrad
from US$6.76
|
2,750
in stock
|
Buy Now |
|
Farnell
from US$5.41
|
2,475
in stock
|
Buy Now |
|
TTI Americas
from US$4.58
|
1,100
in stock
|
Buy Now |
|
RS
from US$4.98
|
125
in stock
|
Buy Now |
|
Heilind Americas
from US$7.88
|
3
in stock
|
Buy Now |
|
Rutronik
from US$3.30
|
0
in stock
|
Buy Now |
|
Avnet America
from US$3.32
|
0
in stock
|
Buy Now |
|
TME
from US$3.39
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$6.39
|
0
in stock
|
Buy Now |
|
element14
from US$5.06
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$3.95
|
0
in stock
|
Buy Now |
|
Sager
from US$4.68
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.53
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$3.54
|
0
in stock
|
Buy Now |
|
EME
from US$3.26
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 1.00mm Mezzanine (IEEE 1386) |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Circuits Loaded | 64 |
| Circuits Maximum | 64 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 10.00mm, 8.00mm, 9.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.000/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.905µm |
| Polarized To Pcb | No |
| Robotic Placement | Pick and Place Cap |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Stacking Connector | Newark Electronics |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 64 714390864 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, RCPT, 64POS, 2ROW, 1MM | Farnell |
| 1.00MM REC 02X32P VT SMT W/CAP | TTI Americas |
| Molex 71439-0864 PCB Socket | RS |
| CUT TAPE MEZZANINE 1.0 BTB REC ASS | Heilind Americas |
| 64P MEZZ 1.00MM FEM 2ROW SMT GOLD | Rutronik |
| Contact | TME |
| 64 WAY MEZZANINE RECEPTACLE 1.0MM PITCH | RS Americas |
| CONNECTOR, STACKING, RCPT, 64POS, 2ROW | element14 |
| 1.00 MM MEZZANINE B-TO-B RECPT | TTI Europe |
| Board to Board & Mezzanine Connectors 1.00MM REC 02X32P VT SMT W/CAP | Sager |
| MEZZANINE 1.0 BTB REC ASSY 30 U 64CK | Heilind Europe |
