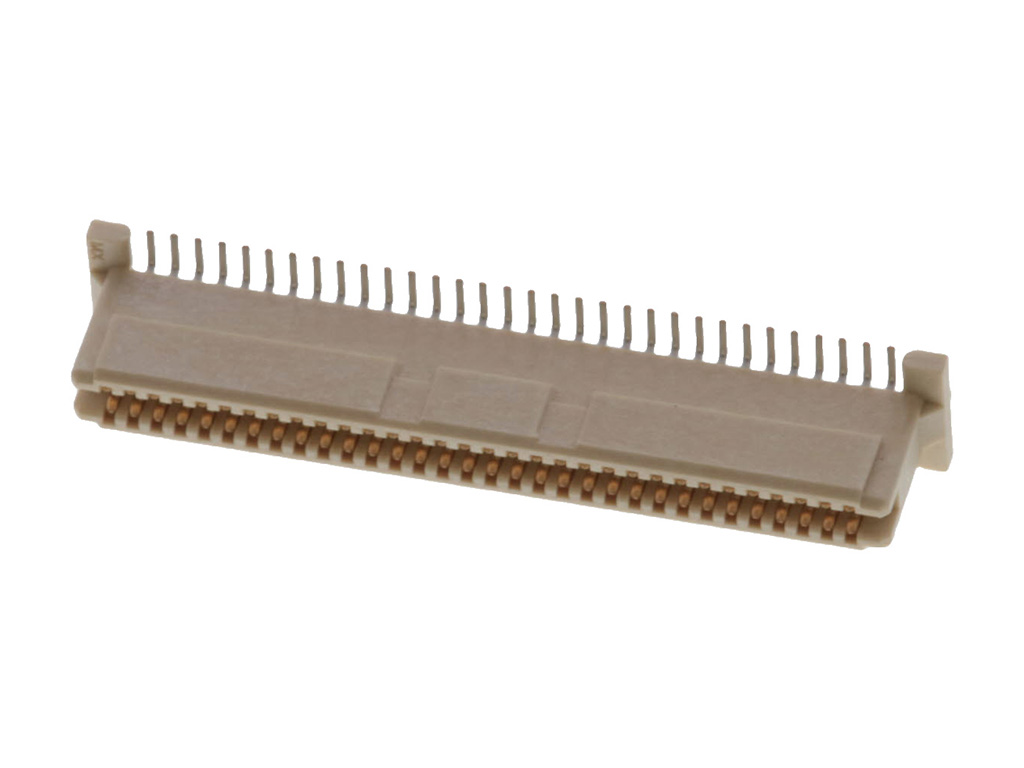

714391164 1.00mm Mezzanine (IEEE 1386) by Molex
1.00mm Mezz (IEEE 1386) Receptacle, Surface Mount, Dual Row, Vertical Stacking, Tube, 0.76µm Gold (Au), 64 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
71439-1164,
0714391164 |
Where to Buy
Prices starting from US$2.63
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$6.67
|
854
in stock
|
Buy Now |
|
|
TTI Americas
from US$3.82
|
588
in stock
|
Buy Now |
|
element14
from US$7.47
|
484
in stock
|
Buy Now |
|
Farnell
from US$4.70
|
484
in stock
|
Buy Now |
|
Heilind Americas
from US$3.89
|
117
in stock
|
Buy Now |
|
Conrad
from US$8.27
|
28
in stock
|
Buy Now |
|
TME
from US$8.53
|
15
in stock
|
Buy Now |
|
Newark Electronics
from US$5.09
|
1
in stock
|
Buy Now |
|
Rutronik
from US$6.32
|
0
in stock
|
Buy Now |
|
RS
from US$12.35
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.63
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$5.30
|
0
in stock
|
Buy Now |
|
Sager
from US$3.24
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.96
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$3.84
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 1.00mm Mezzanine (IEEE 1386) |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Circuits Loaded | 64 |
| Circuits Maximum | 64 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 12.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.000/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.905µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.00 MM MEZZANINE B-TO-B RECPT | TTI Europe |
| 1.00MM REC 02X32P VT SMT 30AU | TTI Americas |
| CONNECTOR, STACKING, RCPT, 64POS, 2ROW | element14 |
| MEZZANINE 1MM BTB REC 30 SAU | Heilind Americas |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 64 Rastermaß: 1 mm 714391164 1 St. Tube | Conrad |
| Contact | TME |
| Connector, Stacking, Rcpt, 64Pos, 2Row | Newark Electronics |
| 64P MEZZANINE FEM 2ROW SMT GOLD | Rutronik |
| Molex 71439-1164 Edge Connector | RS |
| Conn Stacking Receptacle 64 POS 11mm/12mm Stack Height 1mm Solder ST Surface Mount | Avnet America |
| PMC MEZZANINE SER 1MM 64WAY 2 ROW STRAIGHT EDGE CONN SMNT FEMALE BOARD TO BOARD | RS Americas |
| Board to Board & Mezzanine Connectors 1.00MM REC 02X32P VT SMT 30AU | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 714391164?
Additional datasheets, footprints and schematics for 714391164 are listed on our Part Details page. You can also find images and similar parts to 714391164 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 714391164 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 714391164 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 714391164 fall under?
The 714391164 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 714391164 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 714391164 you can contact the distributor directly for product support, shipping queries etc.
Is the 714391164 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 714391164 have stock available?
Authorised distributors including TTI Europe, TTI Americas, element14, Farnell and Heilind Americas have stock available or on a lead time for 714391164.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 714391164 often in real-time on the comparison pages.
What if I can't find stock of 714391164?
You can fill out our help required form which you can use to request a quote for 714391164 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
