714393164 1.00mm Mezzanine (IEEE 1386) by Molex

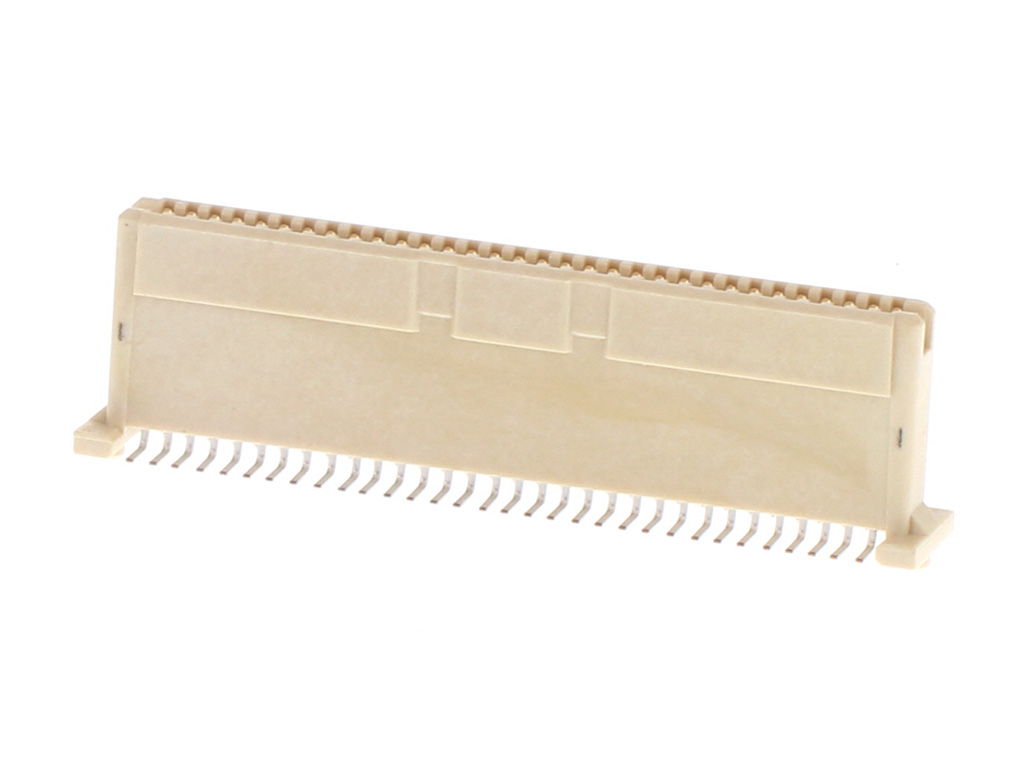

1.00mm Mezz (IEEE 1386) Receptacle, Surface Mount, Dual Row, Vertical Stacking, Tube, 0.76µm Gold (Au), 64 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
71439-3164,
0714393164 |
Where to Buy
Prices starting from US$6.07
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$7.75
|
1,272
in stock
|
Buy Now |
|
Farnell
from US$8.51
|
1,145
in stock
|
Buy Now |
|
Newark Electronics
from US$9.40
|
196
in stock
|
Buy Now |
|
element14
from US$7.65
|
196
in stock
|
Buy Now |
|
RS
from US$10.49
|
7
in stock
|
Buy Now |
|
TME
from US$9.10
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$6.88
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$6.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$6.07
|
0
in stock
|
Buy Now |
|
EME
from US$8.25
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 1.00mm Mezzanine (IEEE 1386) |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Circuits Loaded | 64 |
| Circuits Maximum | 64 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 14.00mm, 15.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.470/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.905µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 64 Rastermaß: 1 mm 714393164 1 St. Tube | Conrad |
| MEZZANINE - ARRAYS | Farnell |
| Connector, Stacking, Rcpt, 64Pos, 2Row | Newark Electronics |
| CONNECTOR, STACKING, RCPT, 64POS, 2ROW | element14 |
| Molex 71439-3164 Edge Connector | RS |
| Contact | TME |
| MEZZANINE 1MM BTB REC 30 | TTI Europe |
| MEZZANINE 1MM BTB REC 30 SAU 64CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 714393164?
Additional datasheets, footprints and schematics for 714393164 are listed on our Part Details page. You can also find images and similar parts to 714393164 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 714393164 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 714393164 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 714393164 fall under?
The 714393164 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 714393164 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 714393164 you can contact the distributor directly for product support, shipping queries etc.
Is the 714393164 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 714393164 have stock available?
Authorised distributors including Conrad, Farnell, Newark Electronics, element14 and RS have stock available or on a lead time for 714393164.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 714393164 often in real-time on the comparison pages.
What if I can't find stock of 714393164?
You can fill out our help required form which you can use to request a quote for 714393164 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
