716612030 EBBI by Molex

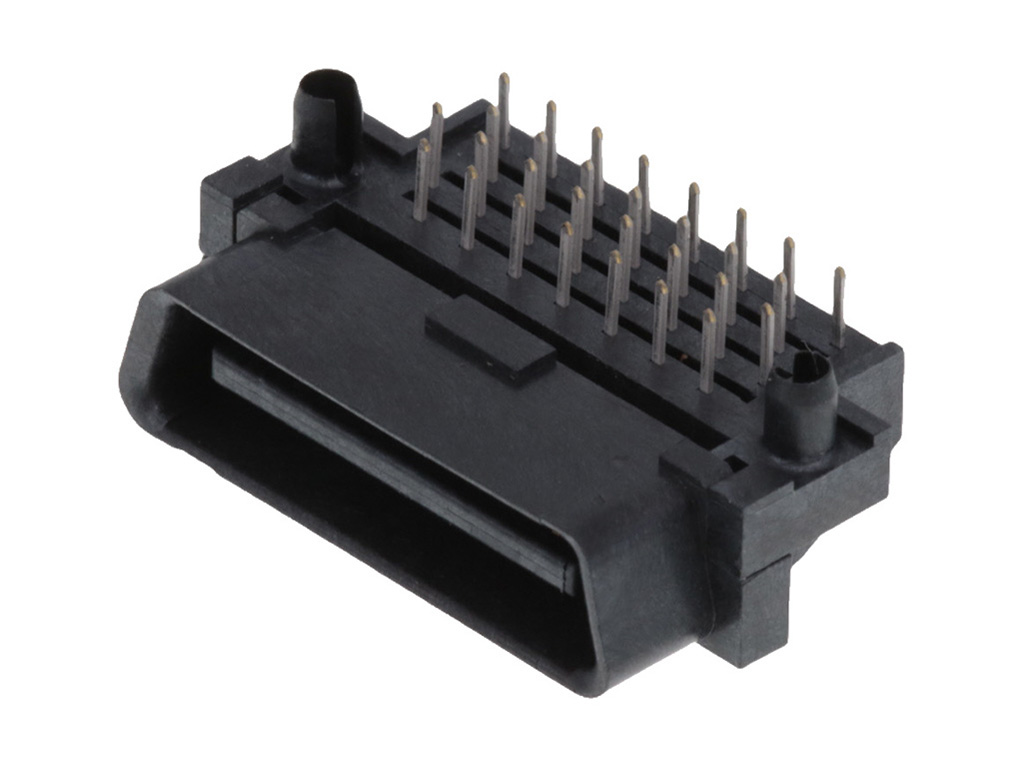

1.27mm Pitch EBBI 50D Plug, Right-Angle, 30 Circuits, 2.79mm PC Tail Length
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
71661-2030,
0716612030 |
Specifications
| Product Name | EBBI |
|---|---|
| Application | Board-to-Board, Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 30V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 30 |
| Circuits Maximum | 30 |
| Color Resin | Black |
| Durability Mating Cycles Max | 2000 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.785/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.270µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 30 CKT EBBI RA PLUG 716612030 | RS Americas |
| Connector, Header, 30Pos, 2Row, 1.27Mm | Newark Electronics |
