736440017 HDM by Molex

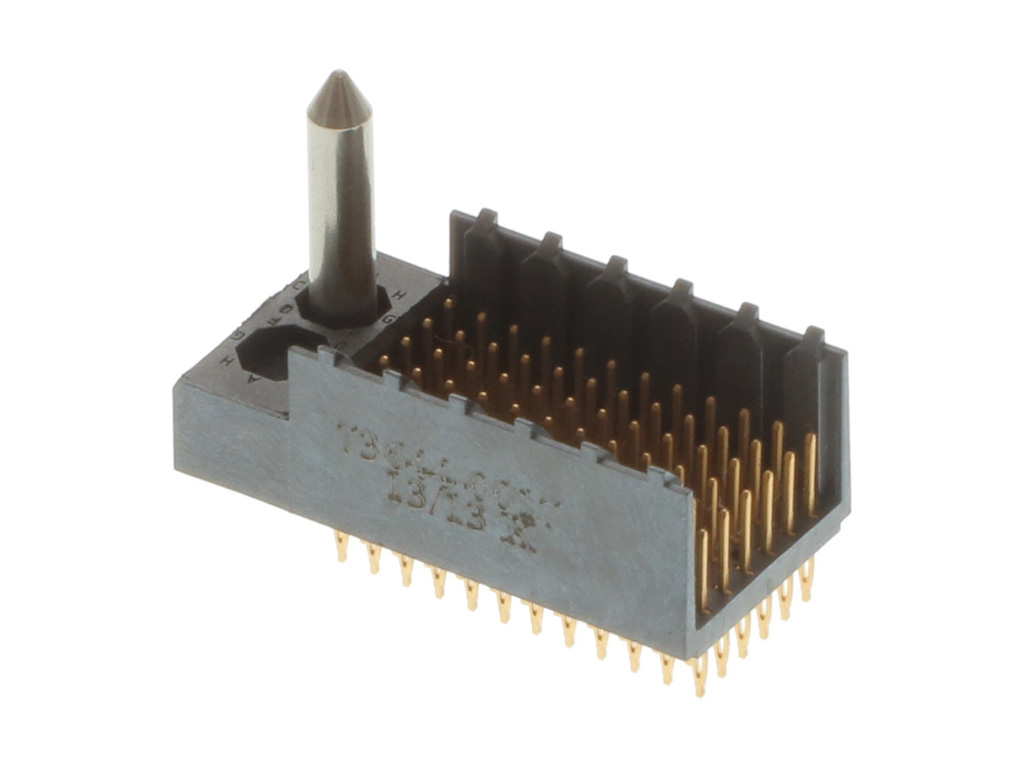

HDM Board-to-Board Backplane Header, Vertical, SMC, Press-Fit, Guide Post Location A, Polarizing Key Position N/A, 72 Circuits, Mating Length 5.00mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
73644-0017,
0736440017 |
Where to Buy
Prices starting from US$10.00
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$12.97
|
256
in stock
|
Buy Now |
|
Newark Electronics
from US$21.84
|
0
in stock
|
Buy Now |
|
RS Americas
from US$19.37
|
0
in stock
|
Buy Now |
|
Sager
from US$15.03
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$14.78
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$10.00
|
0
in stock
|
Buy Now |
|
Farnell
from US$18.24
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | HDM |
|---|---|
| Application | Backplane |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Data Rate | 1.0 Gbps |
| Real Signals Per25mm | 75 |
| Shielded | No |
| Voltage Maximum | 250V AC |
Physical |
|
|---|---|
| Circuits Loaded | 72 |
| Circuits Maximum | 72 |
| Color Resin | Black, Natural |
| Durability Mating Cycles Max | 250 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Material Metal | Phosphor Bronze, Stainless Steel |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 5.610/g |
| Number Of Columns | 12 |
| Number Of Pairs | Open Pin Field |
| Number Of Rows | 6 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 2.50mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole - Compliant Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Backplane Connector, Header, 72Pos, 2Mm | Newark Electronics |
| 2MM HDM BP GP PF A 30AU GF 72CKT | RS Americas |
| High Speed / Modular Connectors HDM POWER MODULE 72C VT GUIDEX | Sager |
| 2MM HDM BP GP PF A 30AU GF 72CKT | Heilind Americas |
| BACKPLANE CONNECTOR, HEADER, 72POS, 2MM | Farnell |
