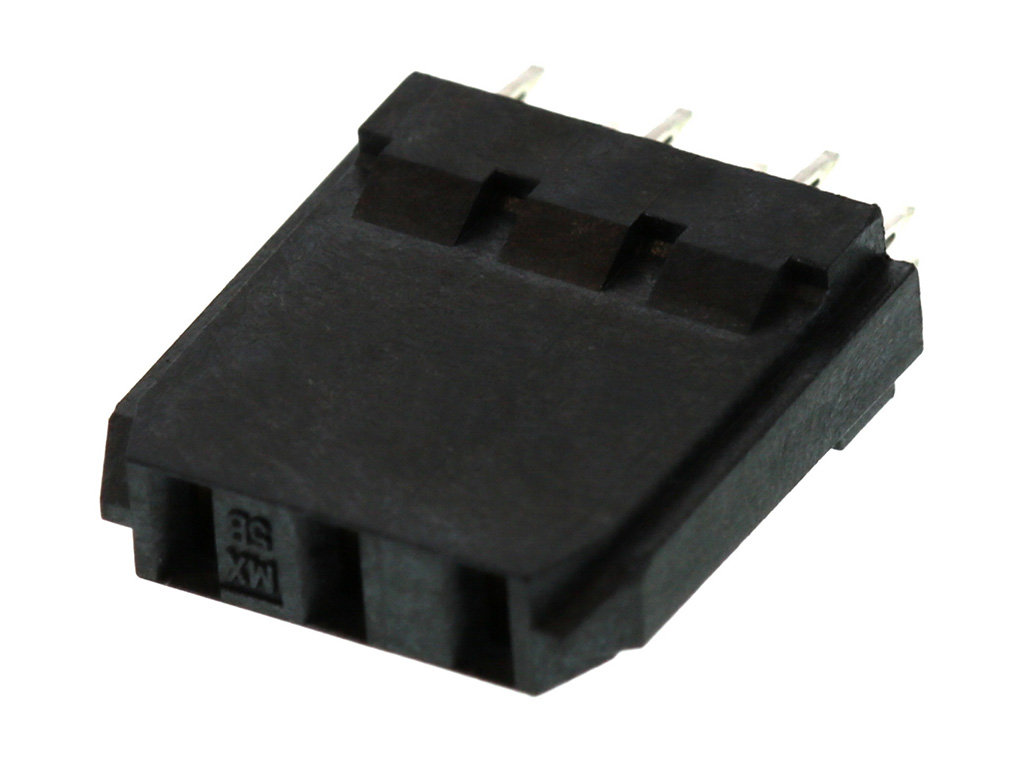

740298000 VHDM by Molex
VHDM Board-to-Board Backplane Receptacle Power Module, 2.00mm Pitch, Vertical, 8 Rows, 3 Circuits, Gold (Au) Selective 0.76µm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
74029-8000,
0740298000 |
Where to Buy
Prices starting from US$7.39
Specifications
| Product Name | VHDM |
|---|---|
| Application | Backplane |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Data Rate | 2.5 Gbps |
| Real Signals Per25mm | 100 |
| Shielded | No |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin-Lead |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.519/g |
| Number Of Columns | N/A |
| Number Of Pairs | Open Pin Field |
| Number Of Rows | 8 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.80mm |
| Pc Tail Length | 2.80mm |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 4.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 0.381µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole - Compliant Pin |
