740591001 VHDM by Molex

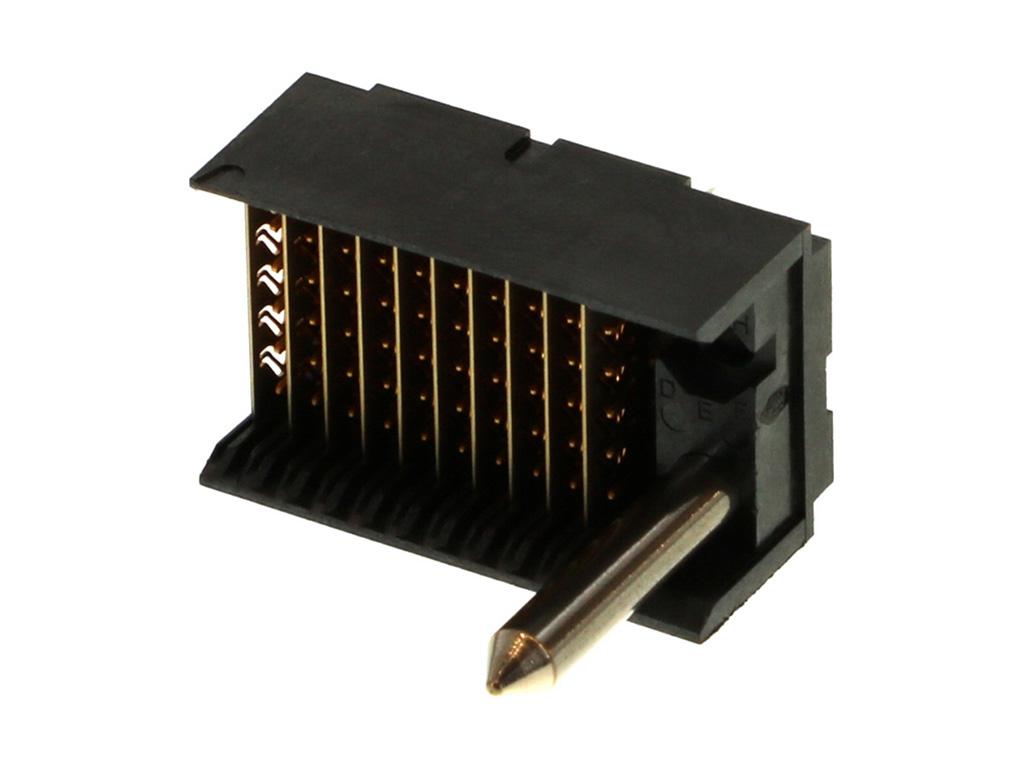

VHDM Single-Ended Board-to-Board Backplane Header, 2.00mm Pitch, Vertical, 6 Rows, Guide Pin Signal Module, Shield End Version, 60 Circuits, 10 Columns, Pin Length 4.75mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
74059-1001,
0740591001 |
Where to Buy
Prices starting from US$22.23
Specifications
| Product Name | VHDM |
|---|---|
| Application | Backplane |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Data Rate | 3.125 Gbps |
| Shielded | Yes |
| Shield Type | Ground Plane Shield |
| Voltage Maximum | 120V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 60 |
| Circuits Maximum | 60 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Material Metal | Beryllium Copper, High Performance Alloy (HPA), Stainless Steel |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 7.200/g |
| Number Of Columns | 10 |
| Number Of Pairs | Open Pin Field |
| Number Of Rows | 6 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.80mm |
| Pc Tail Length | 2.50mm |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole - Compliant Pin |
