741640008 C-Grid by Molex

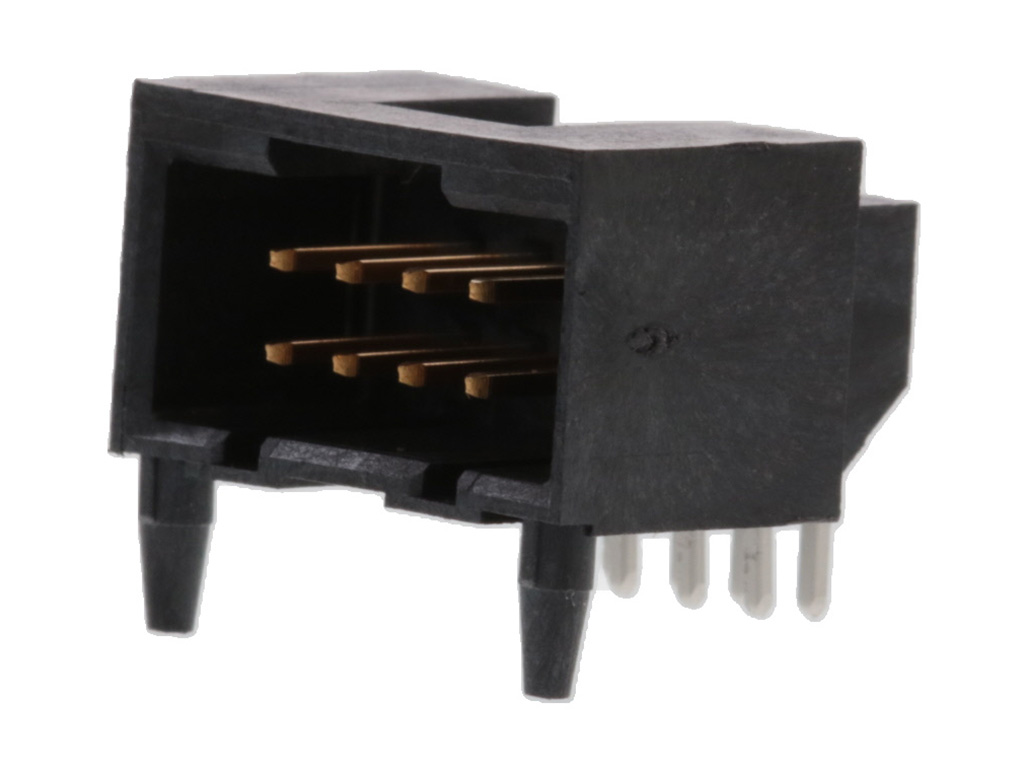

C-Grid PCB Receptacle, 2.54mm Pitch, Through Hole, Dual Row, Right-Angle, Shrouded, High-Temperature, 8 Circuits, 0.38µm Gold (Au) Plating, with Pegs
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
74164-0008,
0741640008 |
Where to Buy
Prices starting from US$1.04
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.14
|
100
in stock
|
Buy Now |
|
element14
from US$2.34
|
8
in stock
|
Buy Now |
|
Farnell
from US$4.01
|
8
in stock
|
Buy Now |
|
Conrad
from US$2.64
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.13
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.16
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.04
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 2.689/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.30mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.910µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
