757103010 GbX I-Trac by Molex

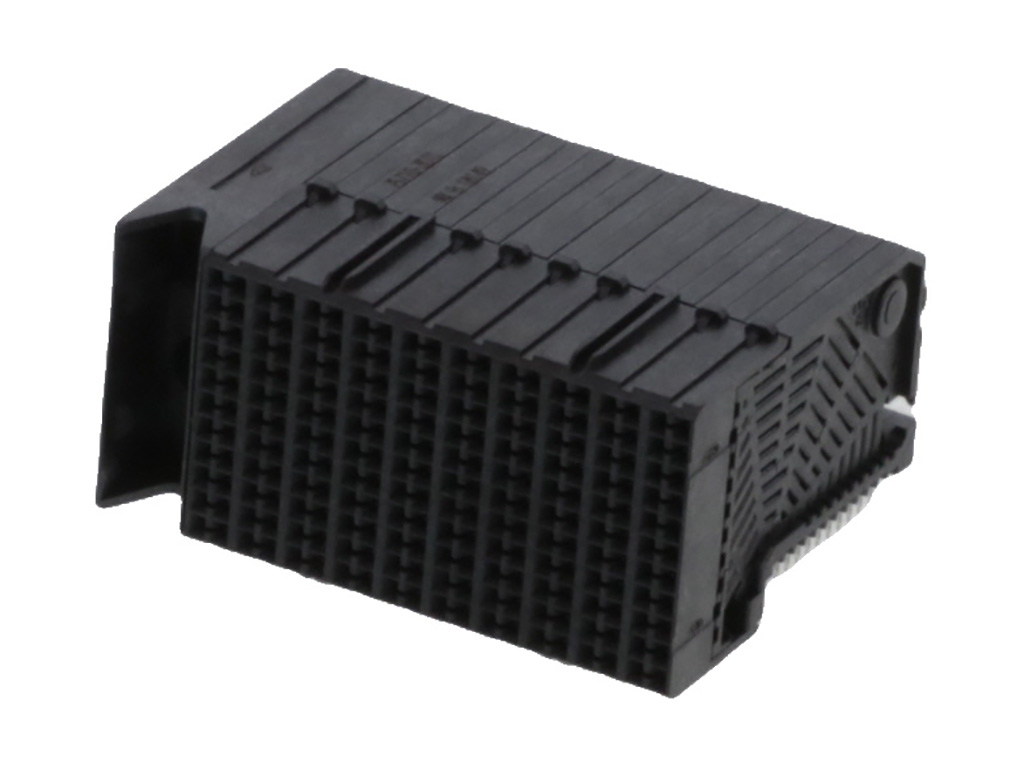

GbX I-Trac Right-Angle Daughtercard Module, 1.85mm by 3.70mm Pitch, Left Guide, 11 Rows, 10 Columns, 220 Circuits, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
75710-3010,
0757103010 |
Where to Buy
Prices starting from US$29.76
Specifications
| Product Name | GbX I-Trac |
|---|---|
| Application | Coplanar, Daughtercard |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Data Rate | 12.0 Gbps |
| Shielded | No |
| Shield Type | N/A |
| Voltage Maximum | 120V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 220 |
| Circuits Maximum | 220 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 31.270/g |
| Number Of Columns | 10 |
| Number Of Pairs | Open Pin Field |
| Number Of Rows | 11 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.85mm, 3.70mm |
| Pitch Termination Interface | 1.00mm, 2.70mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 0.762µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -55° to +80°C |
| Termination Interface Style | Through Hole - Compliant Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| High Speed/Modular Conn 11X10 Dc Rec Guide Left |Molex 75710-3010 | Newark Electronics |
| Connector: DIN 41612 | TME |
| Molex Buchsengehäuse-Platine Polzahl Gesamt 220 Rastermaß: 3.70 mm 757103010 1 St. Tray | Conrad |
| CONN, BACKPLANE, RCPT, 220POS, 11ROW | Farnell |
| I-TRAC DC SIGNAL MODULE 10COL L-FREE | Heilind Americas |
