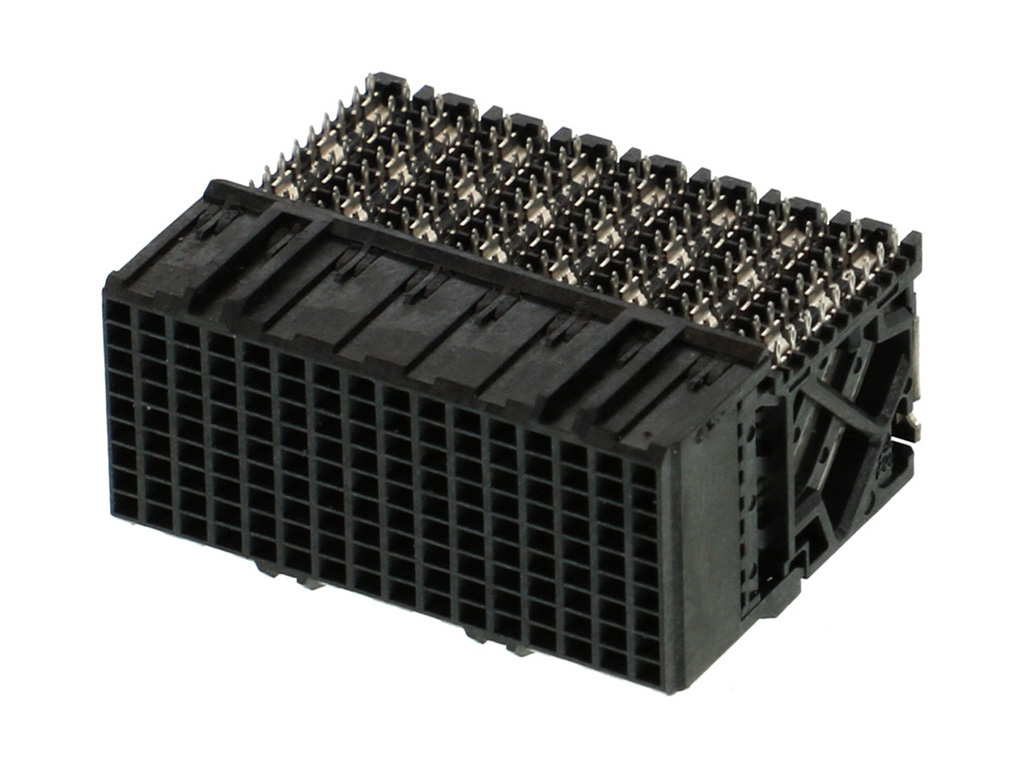

761701026 Impact by Molex
Impact 100 Ohm 3 Pair Right-Angle Daughtercard Receptacle, Unguided, 16 Columns, 144 Circuits, Plated Through Hole Dimension 0.39mm, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
76170-1026,
0761701026 |
Specifications
| Product Name | Impact |
|---|---|
| Application | Conventional, Coplanar, Daughtercard |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.75A |
| Data Rate | 25.0 Gbps |
| Impedance | 100Ω |
| Shielded | No |
| Shield Type | N/A |
| Voltage Maximum | 30V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 144 |
| Circuits Maximum | 144 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 12.360/g |
| Number Of Columns | 16 |
| Number Of Pairs | 3 |
| Number Of Rows | 9 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.00mm |
| Pc Tail Length | 1.20mm |
| Pitch Mating Interface | 1.90mm |
| Pitch Termination Interface | 1.90mm |
| Plating Min Mating | 0.762µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Through Hole - Compliant Pin |
