782111044 Impact by Molex

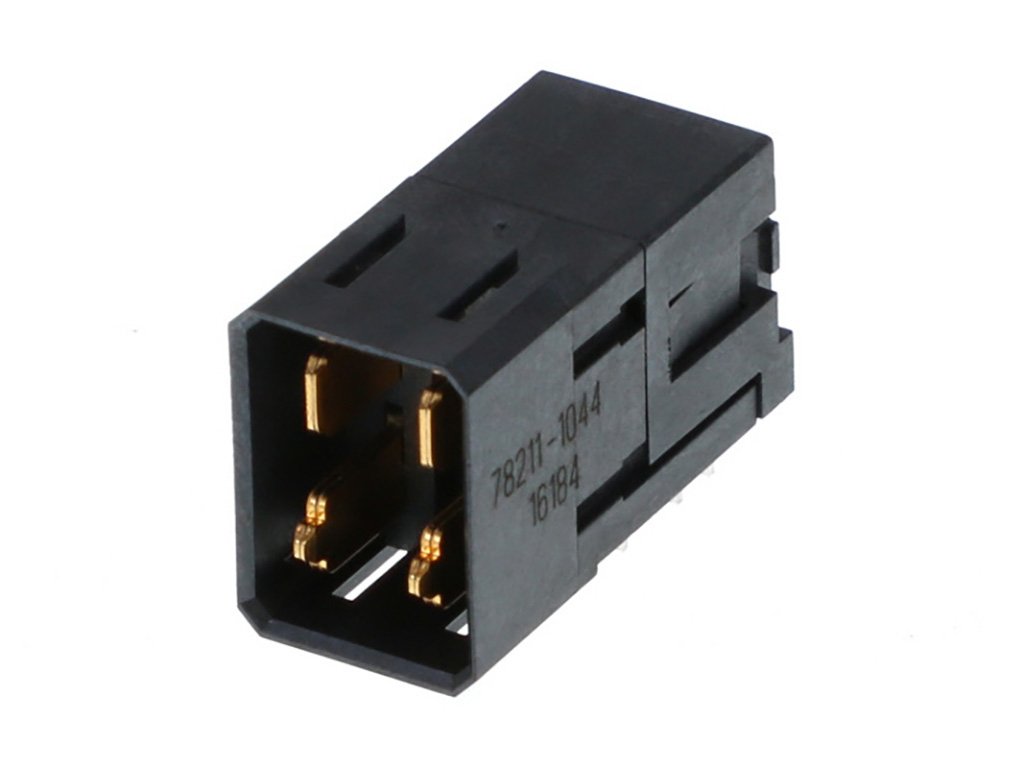

Impact 3 Pair, Right-Angle Power Header, Press-Fit, Blade A1 & A2 Length 6.90mm, Blade B1 & B2 Length 5.70mm, LCP, Glass Filled UL94-V0, Black, Tray Packaging, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
78211-1044,
0782111044 |
Where to Buy
Prices starting from US$4.38
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$8.44
|
380
in stock
|
Buy Now |
|
TME
from US$5.87
|
380
in stock
|
Buy Now |
|
Conrad
from US$7.32
|
380
in stock
|
Buy Now |
|
Farnell
from US$11.32
|
342
in stock
|
Buy Now |
|
TTI Americas
from US$6.20
|
190
in stock
|
Buy Now |
|
Avnet America
from US$5.72
|
25
in stock
|
Buy Now |
|
RS Americas
from US$7.60
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$6.05
|
0
in stock
|
Buy Now |
|
Sager
from US$6.70
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$6.59
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.38
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$11.05
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Impact |
|---|---|
| Application | Conventional, Coplanar |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 15.0A |
| Data Rate | N/A |
| Shielded | No |
| Shield Type | N/A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 5.028/g |
| Number Of Columns | N/A |
| Number Of Pairs | 3 |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.50mm |
| Pitch Mating Interface | 5.20mm |
| Pitch Termination Interface | 2.00mm, 3.20mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Through Hole - Compliant Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| High Speed/Modular Conn Impact Pwr 3Pr Ra Hd Hdr |Molex 78211-1044 | Newark Electronics |
| Connector: DIN 41612 | TME |
| Molex Einbau-Stiftleiste (Standard) 782111044 1 St. Tray | Conrad |
| CONN, BACKPLANE, HDR, 4POS, 2ROW | Farnell |
| IMPACT 3PR POWER 4P RA | TTI Americas |
| IMPACT PWR 3PR RA HDR PF .76AULF 4CKT | RS Americas |
| IMPACT PWR 3PR RA HDR PF .76AU | TTI Europe |
| High Speed / Modular Connectors IMPACT 3PR POWER 4P RA | Sager |
| IMPACT PWR 3PR RA HDR PF .76A LF 4CKT | Heilind Americas |
