782141001 Impact by Molex

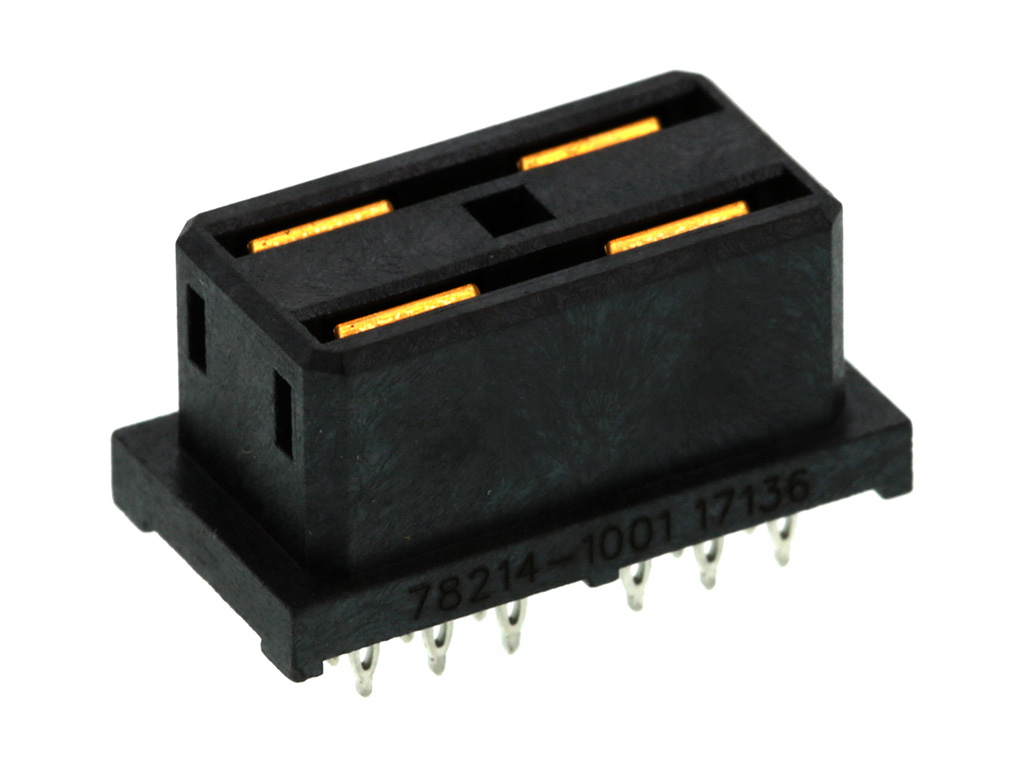

Impact 4 Pair, Vertical Power Receptacle, Press-Fit, LCP, Glass Filled UL94-V0, Black, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
78214-1001,
0782141001 |
Where to Buy
Prices starting from US$4.55
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$5.01
|
2,070
in stock
|
Buy Now |
|
Conrad
from US$5.48
|
2,070
in stock
|
Buy Now |
|
Farnell
from US$8.08
|
1,863
in stock
|
Buy Now |
|
Newark Electronics
from US$6.09
|
1,800
in stock
|
Buy Now |
|
Avnet America
from US$5.03
|
0
in stock
|
Buy Now |
|
RS Americas
from US$5.48
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$4.55
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$5.42
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.88
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.85
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$5.79
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Impact |
|---|---|
| Application | Conventional, Mezzanine, Orthogonal Midplane |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 20.0A |
| Data Rate | N/A |
| Shielded | No |
| Shield Type | N/A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.619/g |
| Number Of Columns | N/A |
| Number Of Pairs | 4 |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 5.20mm |
| Pitch Termination Interface | 2.00mm, 3.20mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Through Hole - Compliant Pin |
