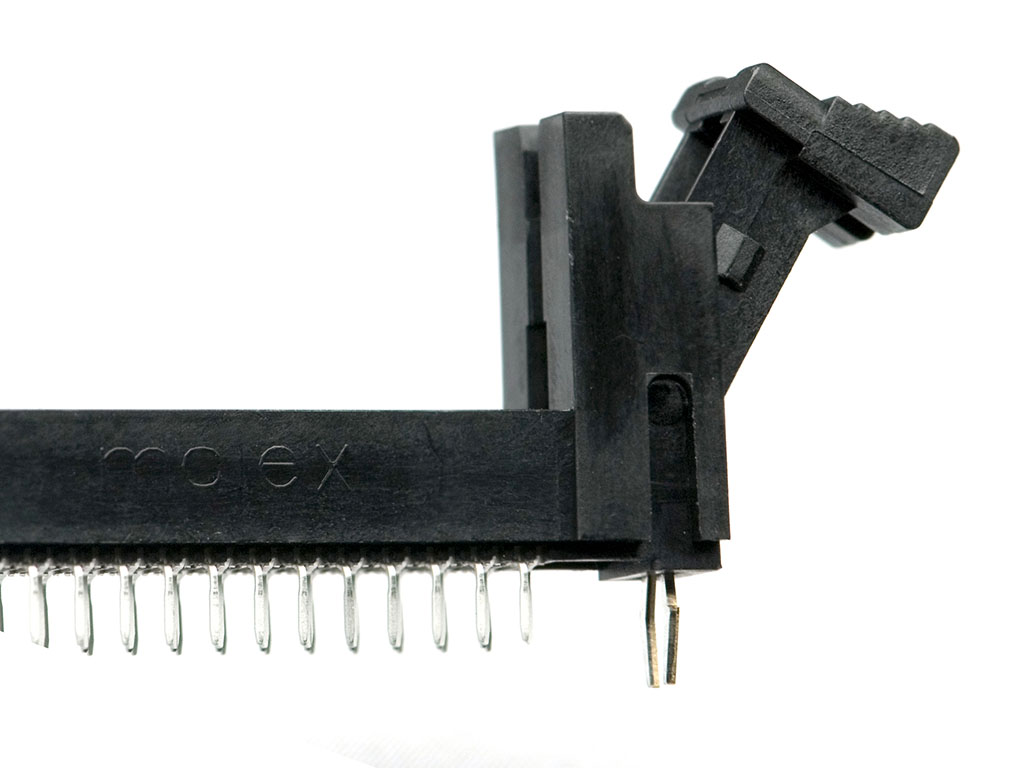

787261004 DDR4 DIMM by Molex
DDR4 DIMM Socket, Vertical Through-Hole, 0.76µm Gold Plating, 288 Circuits, PCB Thickness 1.57mm, Tail Length 2.67mm, Black Housing, White Latch
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
78726-1004,
0787261004 |
Where to Buy
Prices starting from US$1.27
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$2.54
|
56,280
in stock
|
Buy Now |
|
Conrad
from US$3.03
|
56,280
in stock
|
Buy Now |
|
Farnell
from US$19.16
|
50,652
in stock
|
Buy Now |
|
element14
from US$12.44
|
209
in stock
|
Buy Now |
|
RS
from US$4.70
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.27
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | DDR4 DIMM |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.75A |
| Voltage Maximum | 29V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 288 |
| Circuits Maximum | 288 |
| Durability Mating Cycles Max | 25 |
| Entry Angle | Vertical (Top Entry) |
| Flammability | 94V-0 |
| Housing Color | Black |
| Keying To Mating Part | No |
| Latch Color | White |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 6.626/g |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 2.67mm |
| Pitch Mating Interface | 0.85mm |
| Pitch Termination Interface | 0.85mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 78726-1004 | TME |
| Molex 78726-1004 1 St. Tray | Conrad |
| CONNECTOR, DIMM SOCKET, 288POS | Farnell |
| Molex 78726-1004 Socket | RS |
| Conn DDR4 DIMM Socket SKT 288 POS 0.85mm Solder ST Thru-Hole Tray | Avnet America |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 787261004?
Additional datasheets, footprints and schematics for 787261004 are listed on our Part Details page. You can also find images and similar parts to 787261004 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 787261004 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 787261004 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 787261004 fall under?
The 787261004 is listed under Memory Module Connectors.
Can I view similar or alternative parts?
You can view similar parts to 787261004 when available in the Memory Module Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 787261004 you can contact the distributor directly for product support, shipping queries etc.
Is the 787261004 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 787261004 have stock available?
Authorised distributors including TME, Conrad, Farnell, element14 and RS have stock available or on a lead time for 787261004.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 787261004 often in real-time on the comparison pages.
What if I can't find stock of 787261004?
You can fill out our help required form which you can use to request a quote for 787261004 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
