834229014 Commercial Micro-D by Molex

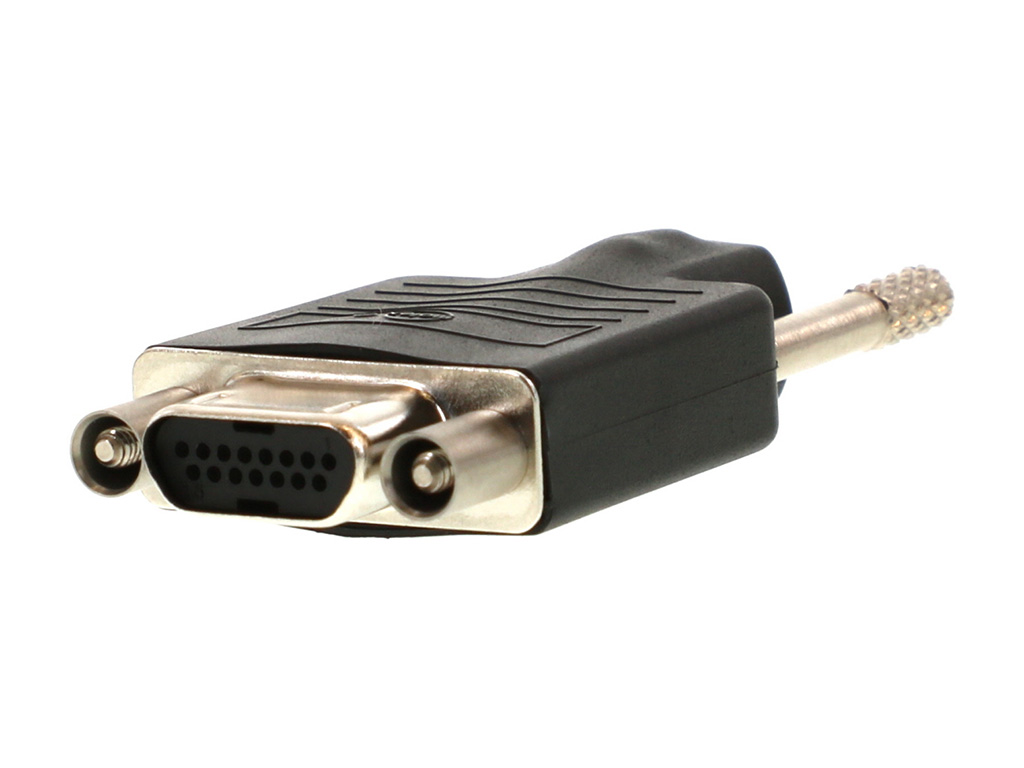

1.27mm Pitch Commercial Micro-D, Cable Receptacle Kit, 15 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
83422-9014,
0834229014 |
Where to Buy
Prices starting from US$11.47
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$16.14
|
1
in stock
|
Buy Now |
|
Rutronik
from US$16.27
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$20.17
|
0
in stock
|
Buy Now |
|
Avnet America
from US$18.15
|
0
in stock
|
Buy Now |
|
RS Americas
from US$19.98
|
0
in stock
|
Buy Now |
|
Compona
from US$13.71
|
0
in stock
|
Buy Now |
|
Conrad
from US$18.86
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$17.66
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$15.32
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$11.47
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$16.14
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Commercial Micro-D |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 30V (RMS) |
Physical |
|
|---|---|
| Boot Color | Black |
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Durability Mating Cycles Max | 500 |
| Gender | Receptacle |
| Lock To Mating Part | Yes |
| Material Plating Mating | Gold |
| Net Weight | 5.130/g |
| Number Of Rows | 2 |
| Orientation | N/A |
| Panel Mount | No |
| Pcb Locator | No |
| Pcb Retention | N/A |
| Pitch Mating Interface | 0.64mm |
| Plating Min Mating | 0.762µm |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | N/A |
| Waterproof Dustproof | No |
| Wire Size Awg | 26, 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CMD RECPT KIT 15 CIR UNASSEMB ED | Heilind Americas |
| 15P MICRO-D CABLE RECEPTACLE | Rutronik |
| Micro-D Connector Receptacle 15 Position Crimp | Newark Electronics |
| Cable Assembly Rubber 26-28AWG 15 POS D-Sub RCP Bag | Avnet America |
| CMD RECPT KIT 15 CIR UNASSEMBLED | RS Americas |
| MOLEX 83422-9014 Socket Micro D 15p Crimp Connector Kit | Compona |
| Molex 83422-9014 D-SUB Buchse Polzahl: 15 1 St. Bag | Conrad |
| MICRO-D REC KIT 15P | TTI Americas |
| COMMERCIAL MICRO D CABLE ASSY | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 834229014?
Additional datasheets, footprints and schematics for 834229014 are listed on our Part Details page. You can also find images and similar parts to 834229014 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 834229014 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 834229014 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 834229014 fall under?
The 834229014 is listed under I/O Connectors.
Can I view similar or alternative parts?
You can view similar parts to 834229014 when available in the I/O Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 834229014 you can contact the distributor directly for product support, shipping queries etc.
Is the 834229014 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 834229014 have stock available?
Authorised distributors including Heilind Americas, Rutronik, Newark Electronics, Avnet America and RS Americas have stock available or on a lead time for 834229014.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 834229014 often in real-time on the comparison pages.
What if I can't find stock of 834229014?
You can fill out our help required form which you can use to request a quote for 834229014 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
