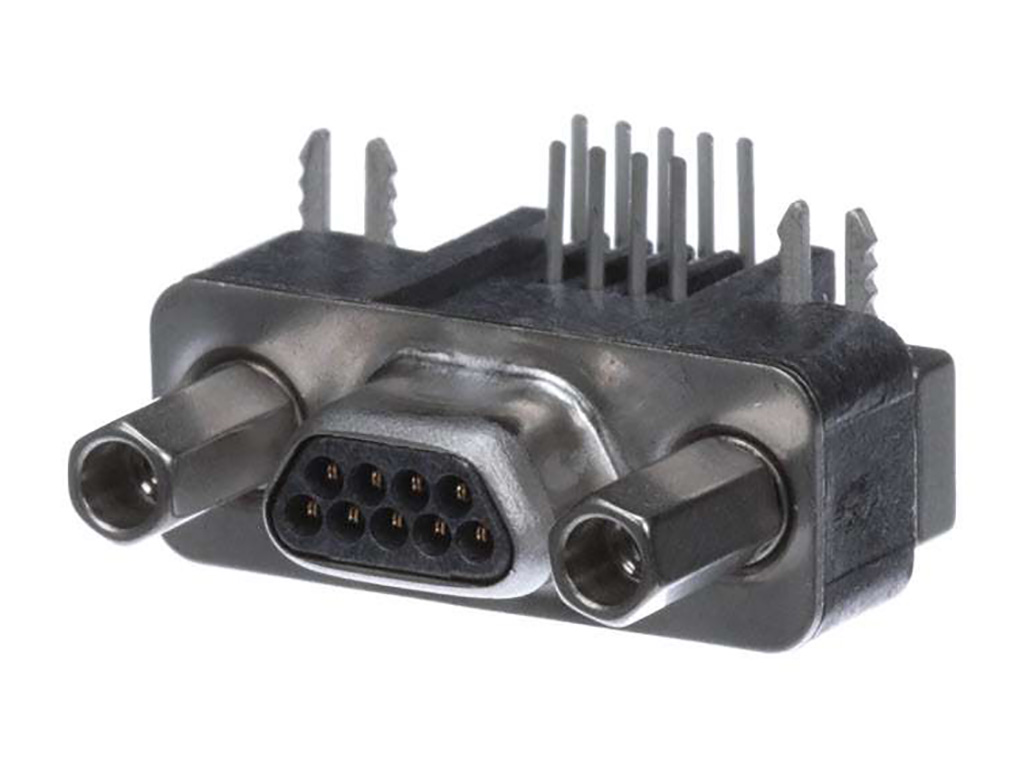

836119006 Commercial Micro-D by Molex
1.27mm Pitch Commercial Micro-D, PCB Mount, Right-Angle Plug, 9 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
83611-9006,
0836119006 |
Where to Buy
Prices starting from US$7.55
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$9.65
|
433
in stock
|
Buy Now |
|
Newark Electronics
from US$13.26
|
402
in stock
|
Buy Now |
|
element14
from US$12.19
|
376
in stock
|
Buy Now |
|
Farnell
from US$12.79
|
371
in stock
|
Buy Now |
|
Conrad
from US$16.28
|
66
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
468
in stock
|
Buy Now |
|
RS
from US$10.33
|
0
in stock
|
Buy Now |
|
Avnet America
from US$11.35
|
0
in stock
|
Buy Now |
|
TME
from US$11.50
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$17.79
|
0
in stock
|
Buy Now |
|
Compona
from US$7.55
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$10.89
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$10.74
|
0
in stock
|
Buy Now |
|
Sager
from US$11.19
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$8.84
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$11.84
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Commercial Micro-D |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Shielded | Yes |
| Voltage Maximum | 350V AC |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Durability Mating Cycles Max | 500 |
| Lock To Mating Part | Yes |
| Material Plating Mating | Gold |
| Net Weight | 4.479/g |
| Orientation | Right Angle |
| Panel Mount | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.52mm |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 1.27mm |
| Plating Min Mating | 0.381µm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CMD RA PLUG 9 CIR W/JKPOST | Heilind Americas |
| Micro D Sub Connector, Right Angle, Commercial Micro-D Series, Plug, 9, Solder, Pcb, Gold Rohs Compliant: Yes |Molex 83611-9006 | Newark Electronics |
| D-SUB CONN, PLUG, 9POS, PANEL | element14 |
| Molex 836119006 D-SUB Steckverbinder Polzahl: 9 Lötpins 1 St. Tube | Conrad |
| Molex 83611-9006 D-Sub Connector | RS |
| Conn Micro D Subminiature Plug 9 POS 1.27mm Solder RA Through Hole Tube | Avnet America |
| Connector: D-Sub | TME |
| CONN. | RS Americas |
| MOLEX 83611-9006 Plug MicroD 9p THT | Compona |
| MICRO-D PLG 9P RA W/JACKPOST | TTI Americas |
| COMMERCIAL MICRO D PLUG 9POS | TTI Europe |
| D-Sub Micro-D Connectors MICRO-D PLG 9P RA W/JACKPOST | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 836119006?
Additional datasheets, footprints and schematics for 836119006 are listed on our Part Details page. You can also find images and similar parts to 836119006 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 836119006 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 836119006 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 836119006 fall under?
The 836119006 is listed under I/O Connectors.
Can I view similar or alternative parts?
You can view similar parts to 836119006 when available in the I/O Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 836119006 you can contact the distributor directly for product support, shipping queries etc.
Is the 836119006 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 836119006 have stock available?
Authorised distributors including Heilind Americas, Newark Electronics, element14, Farnell and Conrad have stock available or on a lead time for 836119006.
