836119016 Commercial Micro-D by Molex

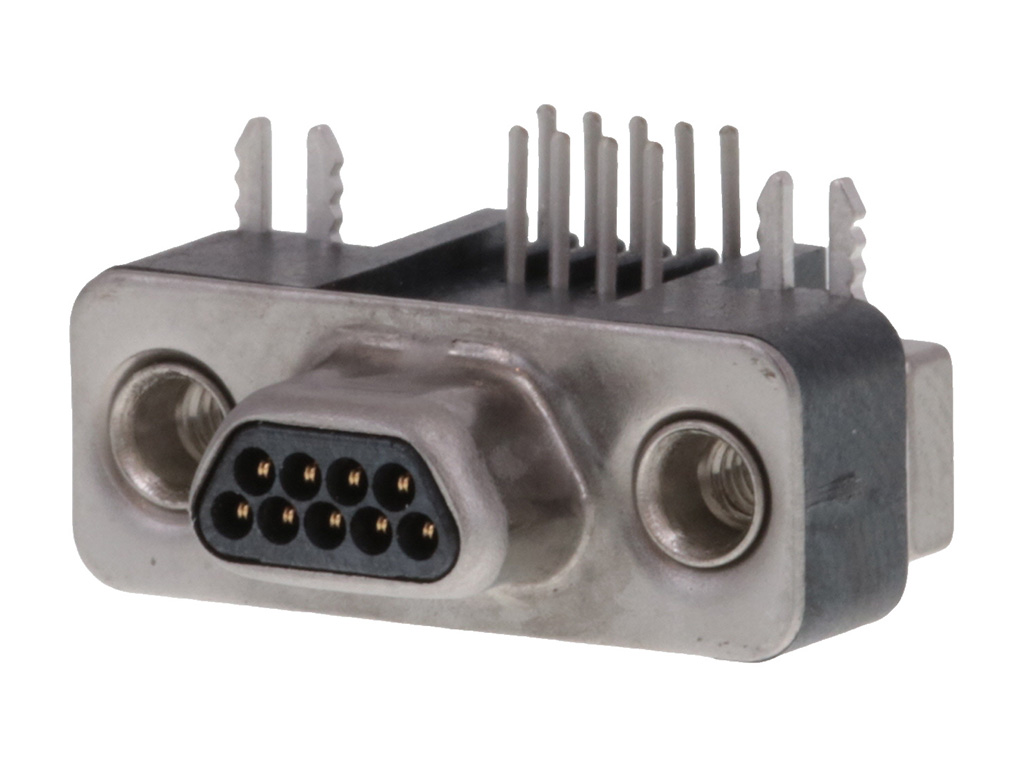

1.27mm Pitch Commercial Micro-D, PCB Mount, Right-Angle Plug, without Jackposts, 9 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
83611-9016,
0836119016 |
Where to Buy
Prices starting from US$6.83
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$7.10
|
611
in stock
|
Buy Now |
|
TME
from US$8.63
|
393
in stock
|
Buy Now |
|
Conrad
from US$10.04
|
393
in stock
|
Buy Now |
|
Farnell
from US$11.82
|
354
in stock
|
Buy Now |
|
Rutronik
from US$8.55
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$12.03
|
0
in stock
|
Buy Now |
|
element14
from US$8.99
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$6.83
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Commercial Micro-D |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Shielded | Yes |
| Voltage Maximum | 350V AC |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Durability Mating Cycles Max | 500 |
| Lock To Mating Part | No |
| Material Plating Mating | Gold |
| Net Weight | 3.677/g |
| Orientation | Right Angle |
| Panel Mount | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.52mm |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 1.27mm |
| Plating Min Mating | 0.381µm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CMD RA 9 CIR JKPOST NOT INSTA LED | Heilind Americas |
| Connector: D-Sub | TME |
| Molex 836119016 D-SUB Steckverbinder 1 St. Tube | Conrad |
| D SUB CONNECTORS | Farnell |
| 09P D-Sub Micro-D Male 90° | Rutronik |
| D-Sub Conn, Plug, 9Pos, Panel | Newark Electronics |
| D-SUB CONN, PLUG, 9POS, PANEL | element14 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 836119016?
Additional datasheets, footprints and schematics for 836119016 are listed on our Part Details page. You can also find images and similar parts to 836119016 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 836119016 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 836119016 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 836119016 fall under?
The 836119016 is listed under I/O Connectors.
Can I view similar or alternative parts?
You can view similar parts to 836119016 when available in the I/O Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 836119016 you can contact the distributor directly for product support, shipping queries etc.
Is the 836119016 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 836119016 have stock available?
Authorised distributors including Heilind Americas, TME, Conrad, Farnell and Rutronik have stock available or on a lead time for 836119016.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 836119016 often in real-time on the comparison pages.
What if I can't find stock of 836119016?
You can fill out our help required form which you can use to request a quote for 836119016 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
