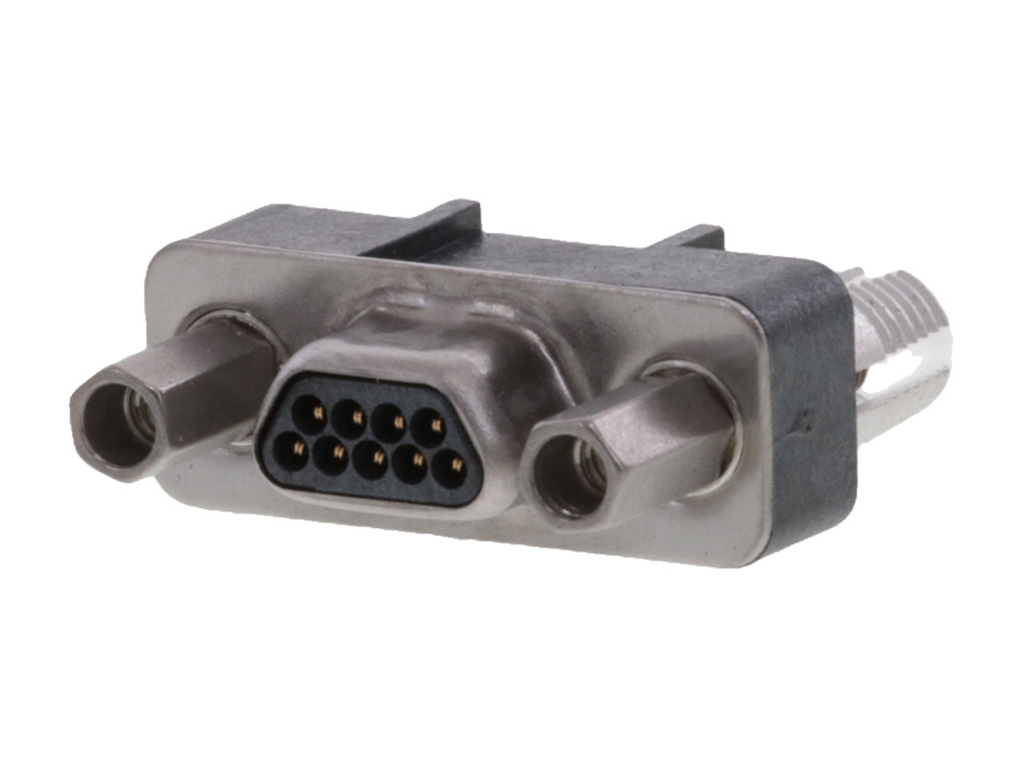

836119023 Commercial Micro-D by Molex
1.27mm Pitch Commercial Micro-D, PCB Mount, Vertical Plug, 9 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
83611-9023,
0836119023 |
Where to Buy
Prices starting from US$9.38
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$19.87
|
584
in stock
|
Buy Now |
|
Conrad
from US$11.38
|
235
in stock
|
Buy Now |
|
Farnell
from US$16.87
|
212
in stock
|
Buy Now |
|
Newark Electronics
from US$13.63
|
47
in stock
|
Buy Now |
|
element14
from US$11.29
|
47
in stock
|
Buy Now |
|
TME
from US$12.17
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$9.71
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$9.38
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$16.04
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Commercial Micro-D |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Shielded | Yes |
| Voltage Maximum | 350V AC |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Durability Mating Cycles Max | 500 |
| Lock To Mating Part | Yes |
| Material Plating Mating | Gold |
| Net Weight | 4.115/g |
| Orientation | Vertical |
| Panel Mount | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.52mm |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 1.27mm |
| Plating Min Mating | 0.381µm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 83611-9023 D-Sub Connector | RS |
| Molex 836119023 D-SUB Steckverbinder Polzahl: 9 Lötpins 1 St. Tube | Conrad |
| D SUB CONNECTORS | Farnell |
| Micro D Sub Connector, 83611 Series, Plug, 9, Through Hole, Through Hole, Gold Rohs Compliant: Yes |Molex 83611-9023 | Newark Electronics |
| D-SUB CONN, PLUG, 9POS, PANEL | element14 |
| Connector: D-Sub | TME |
| CMD VERTICAL PLUG 9 CIR W/JKP ST | Heilind Americas |
| MICRO-D PLG 9P VT W/JACKPOST | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 836119023?
Additional datasheets, footprints and schematics for 836119023 are listed on our Part Details page. You can also find images and similar parts to 836119023 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 836119023 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 836119023 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 836119023 fall under?
The 836119023 is listed under I/O Connectors.
Can I view similar or alternative parts?
You can view similar parts to 836119023 when available in the I/O Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 836119023 you can contact the distributor directly for product support, shipping queries etc.
Is the 836119023 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 836119023 have stock available?
Authorised distributors including RS, Conrad, Farnell, Newark Electronics and element14 have stock available or on a lead time for 836119023.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 836119023 often in real-time on the comparison pages.
What if I can't find stock of 836119023?
You can fill out our help required form which you can use to request a quote for 836119023 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
