836129024 Commercial Micro-D by Molex

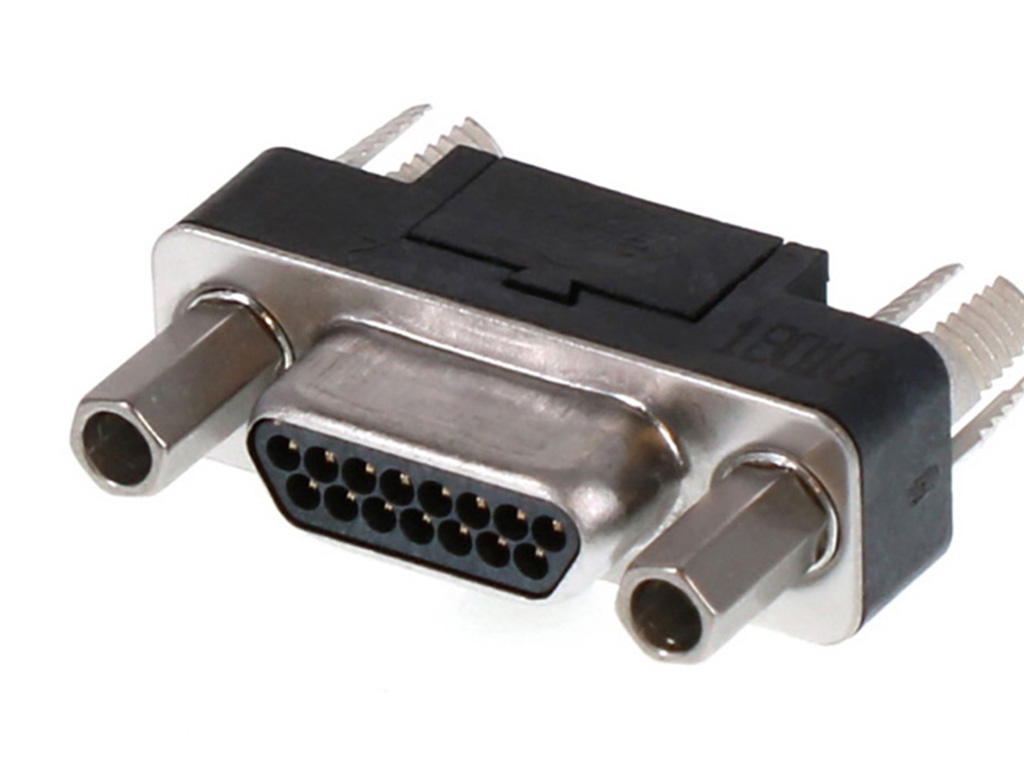

1.27mm Pitch Commercial Micro-D, PCB Mount, Vertical Plug, 15 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
83612-9024,
0836129024 |
Where to Buy
Prices starting from US$11.58
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$14.43
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$19.20
|
0
in stock
|
Buy Now |
|
TME
from US$11.58
|
0
in stock
|
Buy Now |
|
element14
from US$14.86
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$14.23
|
0
in stock
|
Buy Now |
|
Farnell
from US$16.91
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$21.06
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Commercial Micro-D |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 350V AC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Durability Mating Cycles Max | 500 |
| Gender | Plug |
| Lock To Mating Part | Yes |
| Material Plating Mating | Gold |
| Net Weight | 4.740/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Panel Mount | Yes |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.52mm |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.381µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 83612-9024 D-Sub Connector | RS |
| Micro D Sub Connector, Commercial Micro-D Series, Plug, 15, Solder, Pcb Mount Rohs Compliant: Yes |Molex 83612-9024 | Newark Electronics |
| Connector: D-Sub | TME |
| D-SUB CONN, PLUG, 15POS, PCB | element14 |
| 1.27MM PITCH COMMERCIAL MICRO | TTI Europe |
| MICRO-D PLG 15P VT W/JACKPOST | TTI Asia |
