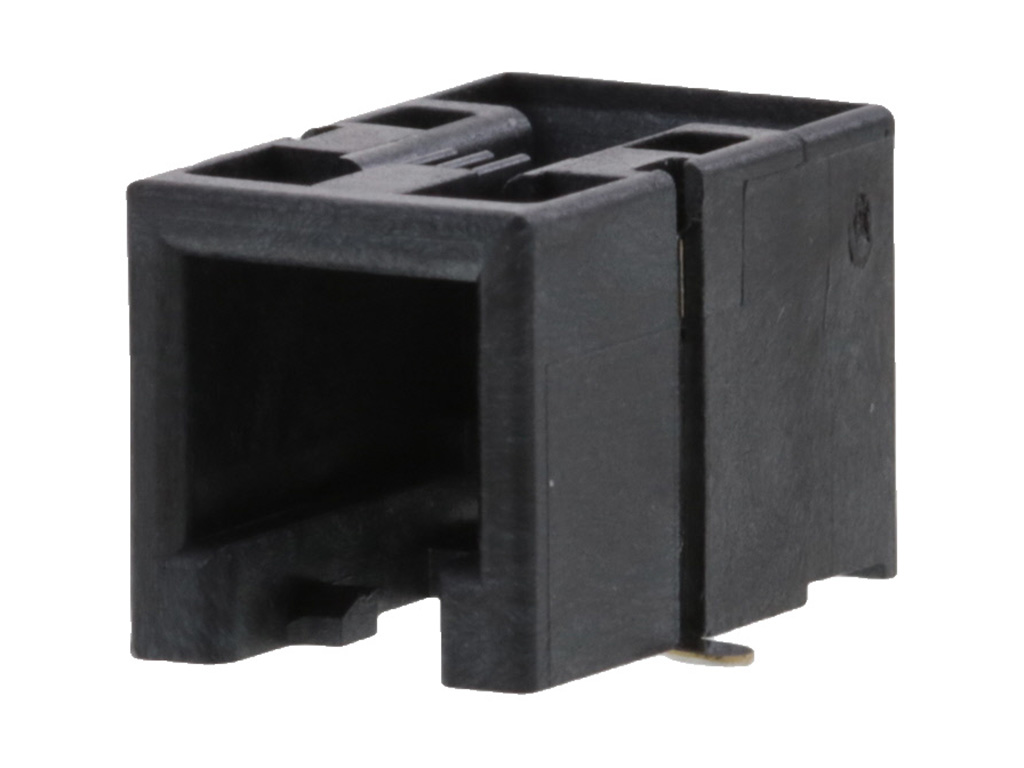

855025005 Modular Jack 4/4 by Molex
Modular Jack, Right-Angle, Surface Mount, 4/4, Low Profile, Tape & Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85502-5005,
0855025005 |
Where to Buy
Prices starting from US$0.94
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.31
|
2,460
in stock
|
Buy Now |
|
Conrad
from US$2.35
|
2,050
in stock
|
Buy Now |
|
Farnell
from US$1.86
|
1,845
in stock
|
Buy Now |
|
TME
from US$1.29
|
1,021
in stock
|
Buy Now |
|
Newark Electronics
from US$1.55
|
410
in stock
|
Buy Now |
|
element14
from US$1.72
|
410
in stock
|
Buy Now |
|
RS
from US$2.78
|
155
in stock
|
Buy Now |
|
Avnet America
from US$1.47
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.64
|
0
in stock
|
Buy Now |
|
Compona
from US$0.94
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.31
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.25
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.98
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.35
|
0
in stock
|
Buy Now |
|
EME
from US$6.84
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 4/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.867/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 4/4 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 4/4 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| Molex Cat 3 Mod Jack/Plug 855025005 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, R/A JACK, 4P4C, SMT | Farnell |
| Connector: RJ9 | TME |
| Modular Conn, Jack, 4P4C, 1 Port, Smt | Newark Electronics |
| CONNECTOR, RJ11, JACK, 1PORT, 4P4C, CAT3 | element14 |
| Molex 85502-5005 RJ11 Connector | RS |
| Conn Modular Jack Receptacle 4 POS 1.02mm Solder Right Angle Surface Mount 4 Terminal Single Port | Avnet America |
| 4P4C RIGHT ANGLE SURFACE MOUNT UTP RJ11 MODULAR JACK CONNECTOR 85502 85502 | RS Americas |
| MOLEX 85502-5005 Socket Square RJ 4p SMT | Compona |
| MDJCK 4/4 RA LOPRO SMT W/TABS | TTI Americas |
| RA LP TRUE SMT JACK 4/4 SIDE .TABS | Heilind Americas |
