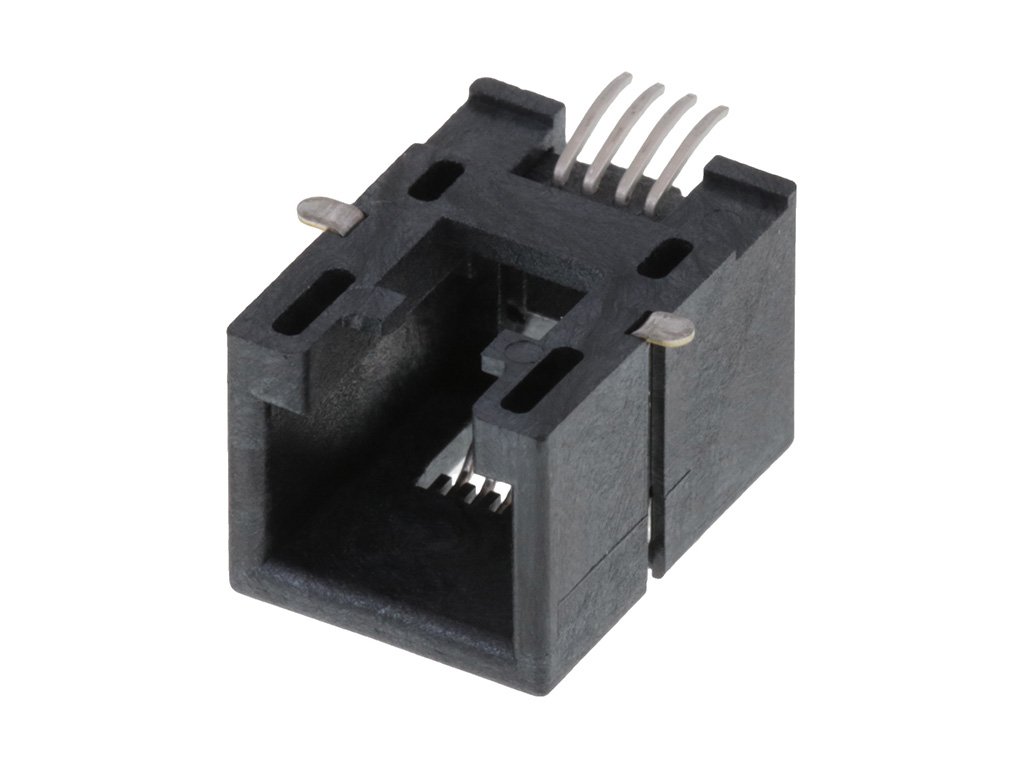

855025006 Modular Jack 6/4 by Molex
Modular Jack, Right-Angle, Surface Mount, 6/4, Low Profile, Tape & Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85502-5006,
0855025006 |
Where to Buy
Prices starting from US$0.94
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.71
|
5,825
in stock
|
Buy Now |
|
Farnell
from US$1.47
|
5,445
in stock
|
Buy Now |
|
Newark Electronics
from US$2.02
|
1,361
in stock
|
Buy Now |
|
element14
from US$1.44
|
1,361
in stock
|
Buy Now |
|
RS
from US$2.18
|
5
in stock
|
Buy Now |
|
Offical Electronic
-
|
3,666
in stock
|
Buy Now |
|
TME
from US$1.25
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.11
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.94
|
0
in stock
|
Buy Now |
|
EME
from US$6.84
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.139/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/4 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Cat 3 Mod Jack/Plug 855025006 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, R/A JACK, 6P4C, SMT | Farnell |
| Jack, Right Angle, Smt, 6/4 | Newark Electronics |
| JACK, RIGHT ANGLE, SMT, 6/4 | element14 |
| Molex 85502-5006 RJ11 Connector | RS |
| Connector: RJ11 | TME |
| 6/4 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| RA LP TRUE SMT JACK 6/4 SIDE .TABS | Heilind Americas |
