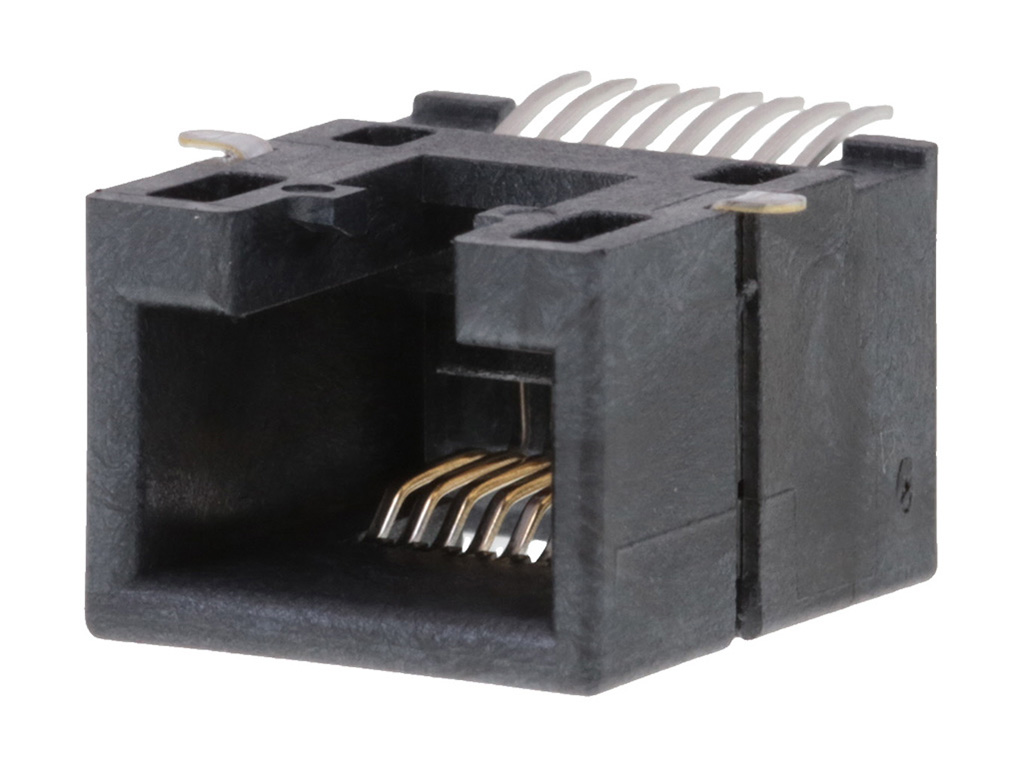

855025008 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Surface Mount, 8/8, Low Profile, Tape & Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85502-5008,
0855025008 |
Where to Buy
Prices starting from US$0.78
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.83
|
31,850
in stock
|
Buy Now |
|
Farnell
from US$1.47
|
28,665
in stock
|
Buy Now |
|
TME
from US$1.19
|
2,711
in stock
|
Buy Now |
|
Newark Electronics
from US$1.46
|
1,492
in stock
|
Buy Now |
|
element14
from US$1.63
|
1,492
in stock
|
Buy Now |
|
TTI Europe
from US$1.10
|
1,190
in stock
|
Buy Now |
|
Rutronik
from US$0.78
|
0
in stock
|
Buy Now |
|
RS
from US$1.29
|
0
in stock
|
Buy Now |
|
Compona
from US$0.79
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.02
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.91
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.92
|
0
in stock
|
Buy Now |
|
EME
from US$0.99
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.413/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Cat 3 Mod Jack/Plug 855025008 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, R/A RJ45 JACK, 8P8C, SMT | Farnell |
| Connector: RJ45 | TME |
| Rj45, Jack, 8, 8, 1 | Newark Electronics |
| MODULAR, JACK, SMT, R/A, RJ45, 8P8C | element14 |
| 8/8 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| RJ45 Modular_Jack 90° SMT Low_prof. | Rutronik |
| Molex 85502-5008 RJ45 Connector | RS |
| MOLEX 85502-5008 Socket Square RJ 8p SMT | Compona |
| RA LP TRUE SMT JACK 8/8 SIDE .TABS | Heilind Americas |
| MDJCK 8/8 RA LOPRO SMT AU | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 855025008?
Additional datasheets, footprints and schematics for 855025008 are listed on our Part Details page. You can also find images and similar parts to 855025008 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 855025008 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 855025008 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 855025008 fall under?
The 855025008 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 855025008 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 855025008 you can contact the distributor directly for product support, shipping queries etc.
Is the 855025008 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 855025008 have stock available?
Authorised distributors including Conrad, Farnell, TME, Newark Electronics and element14 have stock available or on a lead time for 855025008.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 855025008 often in real-time on the comparison pages.
What if I can't find stock of 855025008?
You can fill out our help required form which you can use to request a quote for 855025008 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
