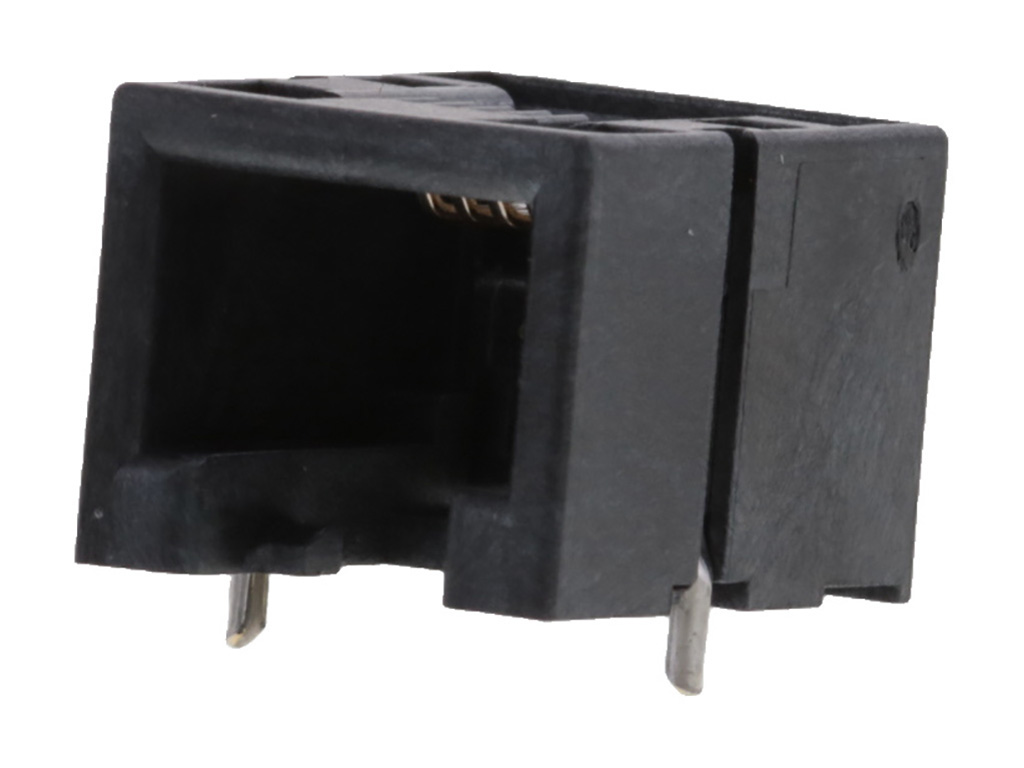

855025011 Modular Jack 6/6 by Molex
Modular Jack, Right-Angle, Surface Mount, 6/6, Low Profile, Pin-in-Hole-Reflow, Tape & Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85502-5011,
0855025011 |
Where to Buy
Prices starting from US$1.06
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.84
|
1,010
in stock
|
Buy Now |
|
element14
from US$1.69
|
1,010
in stock
|
Buy Now |
|
Farnell
from US$1.82
|
1,010
in stock
|
Buy Now |
|
Conrad
from US$2.38
|
980
in stock
|
Buy Now |
|
Offical Electronic
-
|
17
in stock
|
Buy Now |
|
Avnet America
from US$1.55
|
0
in stock
|
Buy Now |
|
TME
from US$1.54
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.32
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.39
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.34
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.06
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$3.00
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.085/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Jack, Rj12, R/A, 6/6 | Newark Electronics |
| JACK, RJ12, R/A, 6/6 | element14 |
| Molex Cat 3 Mod Jack/Plug 855025011 Buchse Schwarz 1 St. | Conrad |
| Connector: RJ12 | TME |
| MODULAR JACK RJ25 6/6 CAT3 SMT RIGHT ANG | RS Americas |
| 6/6 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| RA LP SMT JACK 6/6 W/TH.S.PEGS | Heilind Americas |
