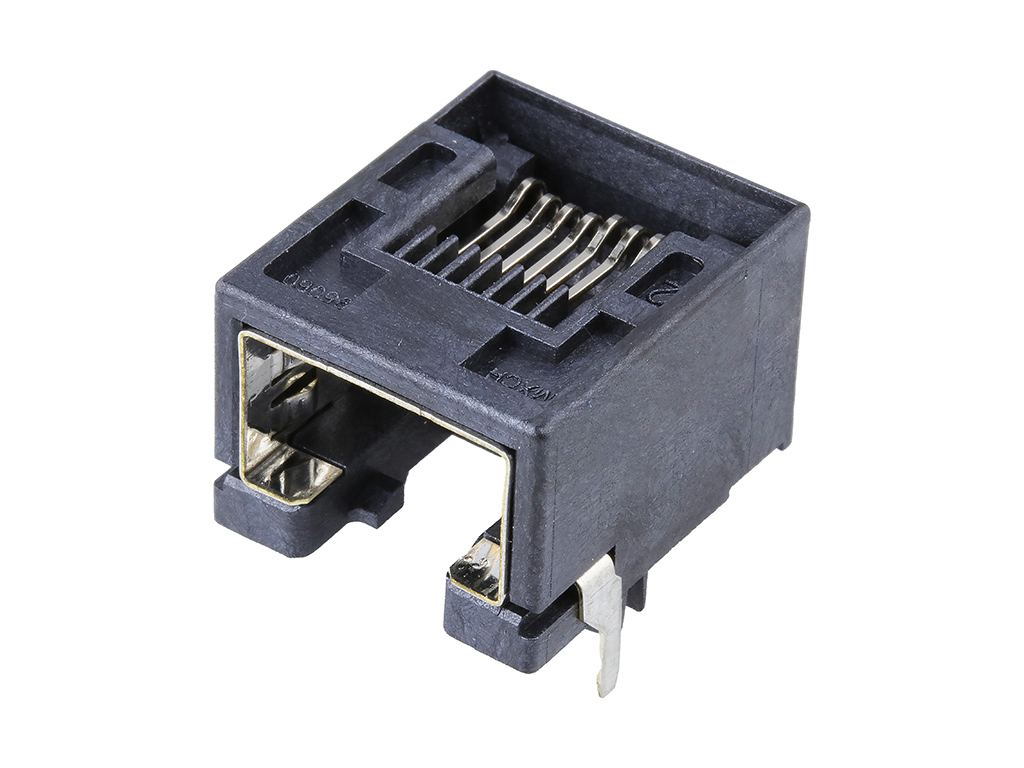

855045001 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Cat5e, Right-Angle, Through Hole, 8/8, Low Profile, Int. Shielded, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85504-5001,
0855045001 |
Where to Buy
Prices starting from US$1.18
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.70
|
2,580
in stock
|
Buy Now |
|
Avnet America
from US$1.51
|
680
in stock
|
Buy Now |
|
element14
from US$2.53
|
15
in stock
|
Buy Now |
|
RS
from US$1.68
|
13
in stock
|
Buy Now |
|
Newark Electronics
from US$2.86
|
10
in stock
|
Buy Now |
|
Farnell
from US$2.47
|
10
in stock
|
Buy Now |
|
Rutronik
from US$1.66
|
0
in stock
|
Buy Now |
|
TME
from US$2.02
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.44
|
0
in stock
|
Buy Now |
|
Conrad
from US$3.01
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.46
|
0
in stock
|
Buy Now |
|
Sager
from US$2.01
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.80
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.18
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.03
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | Yes |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.711/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 8/8 RA SHLD CAT 5E LOPRO | TTI Americas |
| 8PIN 8CONTACT MODULAR JACK | Avnet America |
| CONNECTOR, RJ45, JACK, 8P8C, 1PORT, CAT5 | element14 |
| Molex 855045001 RJ45 Connector | RS |
| Conn, Rj45 Jack, 8P8C, 1 Port, Th | Newark Electronics |
| RJ45 Modular_Jack 8/8 R/A Shielded | Rutronik |
| Connector: RJ45 | TME |
| CAT5E JACK 8/8 RA LP TH IN.SHIELD | RS Americas |
| Molex Molex 855045001 CAT 5 R.A INSH JACK 855045001 Buchse Polzahl Sensoren 8P8C 1 St. | Conrad |
| 8/8 MOD JACK RT ANGLE | TTI Europe |
| Modular Connectors / Ethernet Connectors MDJCK 8/8 RA SHLD CAT 5E LOPRO | Sager |
| CAT5 JACK 8/8 RA LP TH IN.SHI LD | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 855045001?
Additional datasheets, footprints and schematics for 855045001 are listed on our Part Details page. You can also find images and similar parts to 855045001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 855045001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 855045001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 855045001 fall under?
The 855045001 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 855045001 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 855045001 you can contact the distributor directly for product support, shipping queries etc.
Is the 855045001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 855045001 have stock available?
Authorised distributors including TTI Americas, Avnet America, element14, RS and Newark Electronics have stock available or on a lead time for 855045001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 855045001 often in real-time on the comparison pages.
What if I can't find stock of 855045001?
You can fill out our help required form which you can use to request a quote for 855045001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
