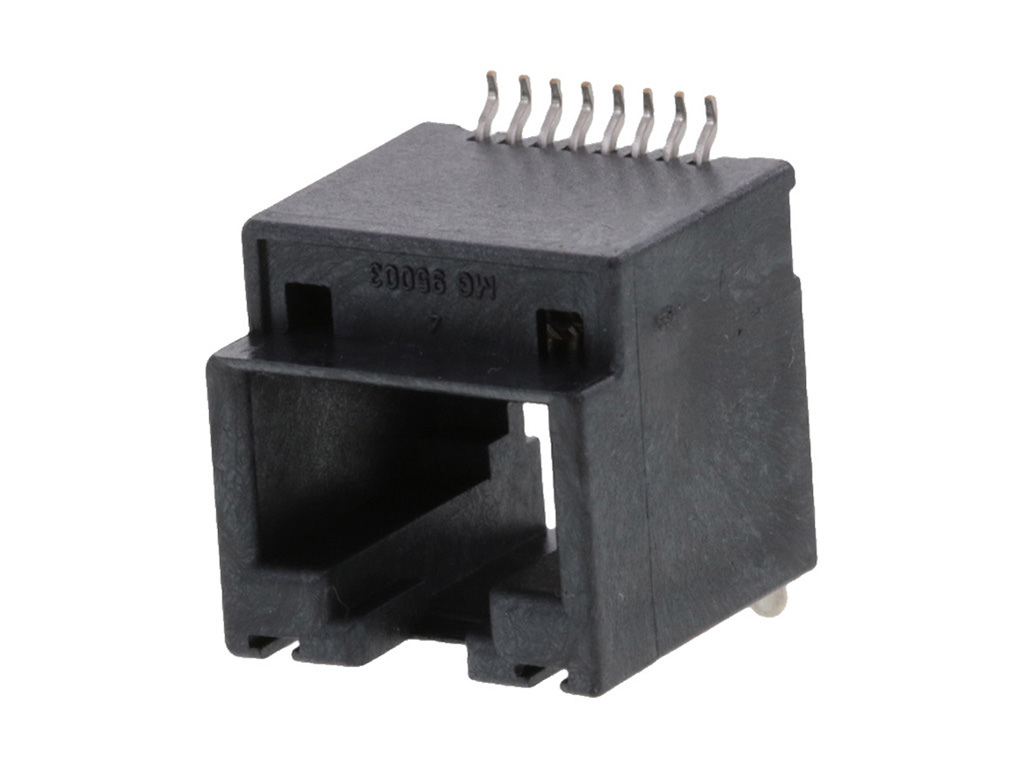

855105020 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Vertical, Top Entry, Surface Mount, 8/8, Solder Tabs, 13" Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85510-5020,
0855105020 |
Where to Buy
Prices starting from US$0.50
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.20
|
16,892
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.45
|
2,296
in stock
|
Buy Now |
|
TME
from US$1.15
|
164
in stock
|
Buy Now |
|
Conrad
from US$1.85
|
164
in stock
|
Buy Now |
|
RS
from US$1.57
|
129
in stock
|
Buy Now |
|
|
RS Americas
from US$0.50
|
50
in stock
|
Buy Now |
|
Newark Electronics
from US$1.34
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.25
|
0
in stock
|
Buy Now |
|
element14
from US$1.21
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.99
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.83
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.28
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 15.70mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.700/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 8/8 VT SMT TOP ENTRY | TTI Americas |
| 8/8 MOD JACK VERTICAL STD PRO | TTI Europe |
| Connector: RJ45 | TME |
| Molex Cat 3 Mod Jack/Plug 855105020 Buchse Schwarz 1 St. | Conrad |
| Molex 85510-5020 RJ45 Connector | RS |
| 85510, CAT3 RJ45 MODULAR JACK SOCKET, VERTICAL, SURFACE MOUNT | RS Americas |
| Jack, Rj45, Vertical, 8/8 | Newark Electronics |
| TOP ENTRY 8/8 SMT JK W/TABS LCP | Avnet America |
| JACK, RJ45, VERTICAL, 8/8 | element14 |
| TOP ENTRY 8/8 SMT JK W/TABS L P | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 855105020?
Additional datasheets, footprints and schematics for 855105020 are listed on our Part Details page. You can also find images and similar parts to 855105020 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 855105020 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 855105020 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 855105020 fall under?
The 855105020 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 855105020 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 855105020 you can contact the distributor directly for product support, shipping queries etc.
Is the 855105020 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 855105020 have stock available?
Authorised distributors including TTI Americas, TTI Europe, TME, Conrad and RS have stock available or on a lead time for 855105020.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 855105020 often in real-time on the comparison pages.
What if I can't find stock of 855105020?
You can fill out our help required form which you can use to request a quote for 855105020 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
