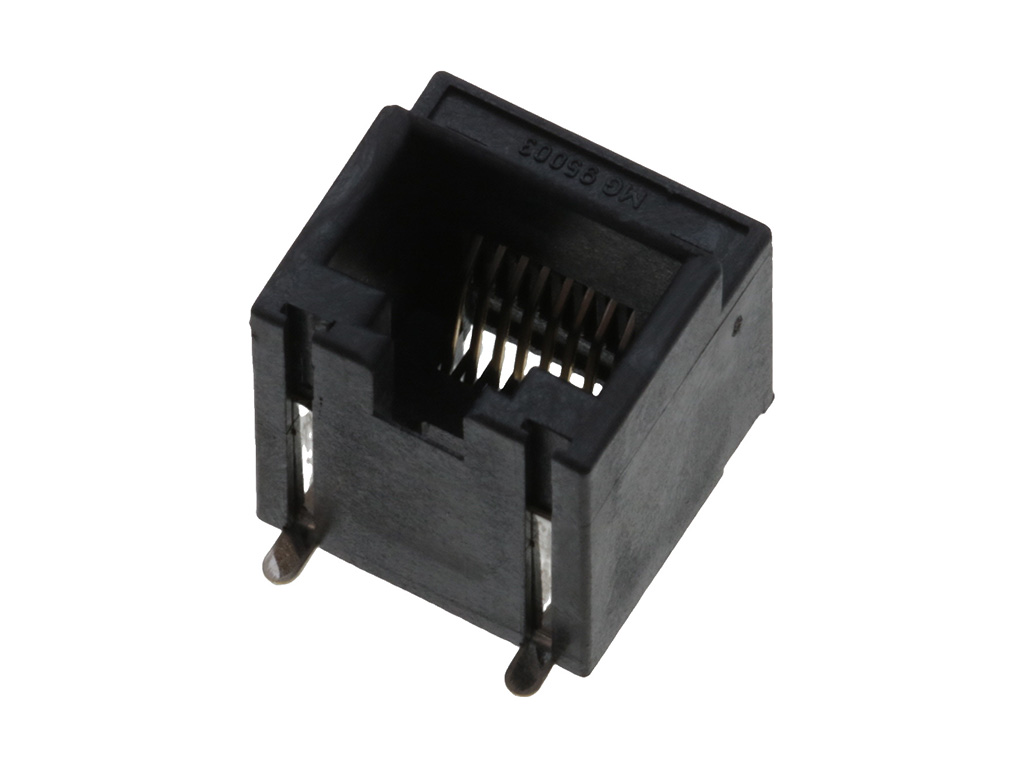

855105120 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Vertical, Top Entry, Surface Mount, 8/8, Solder Tabs, Pick-and-Place Polyimide Tape, 13" Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85510-5120,
0855105120 |
Where to Buy
Prices starting from US$0.87
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.91
|
4,920
in stock
|
Buy Now |
|
Heilind Americas
from US$0.96
|
1,722
in stock
|
Buy Now |
|
Newark Electronics
from US$1.75
|
1
in stock
|
Buy Now |
|
element14
from US$1.64
|
1
in stock
|
Buy Now |
|
Farnell
from US$1.66
|
1
in stock
|
Buy Now |
|
Avnet America
from US$1.21
|
0
in stock
|
Buy Now |
|
TME
from US$1.10
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.56
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.97
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.87
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.09
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 15.70mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.800/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 8/8 VT SMT TOP ENTRY | TTI Americas |
| TOPENT 8/8 SMT JK W/TABS LCP P&P | Heilind Americas |
| Rj45 Connector, Jack, 8P8C, 1Port, Smt | Newark Electronics |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, SMT | element14 |
| Conn RJ-45 F 8 POS 1.02mm Solder ST SMD 8 Terminal 1 Port Embossed T/R | Avnet America |
| Connector: RJ45 | TME |
| JACK | RS Americas |
| TOPENT 8/8 SMT JK W/TABS | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 855105120?
Additional datasheets, footprints and schematics for 855105120 are listed on our Part Details page. You can also find images and similar parts to 855105120 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 855105120 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 855105120 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 855105120 fall under?
The 855105120 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 855105120 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 855105120 you can contact the distributor directly for product support, shipping queries etc.
Is the 855105120 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 855105120 have stock available?
Authorised distributors including TTI Americas, Heilind Americas, Newark Electronics, element14 and Farnell have stock available or on a lead time for 855105120.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 855105120 often in real-time on the comparison pages.
What if I can't find stock of 855105120?
You can fill out our help required form which you can use to request a quote for 855105120 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
