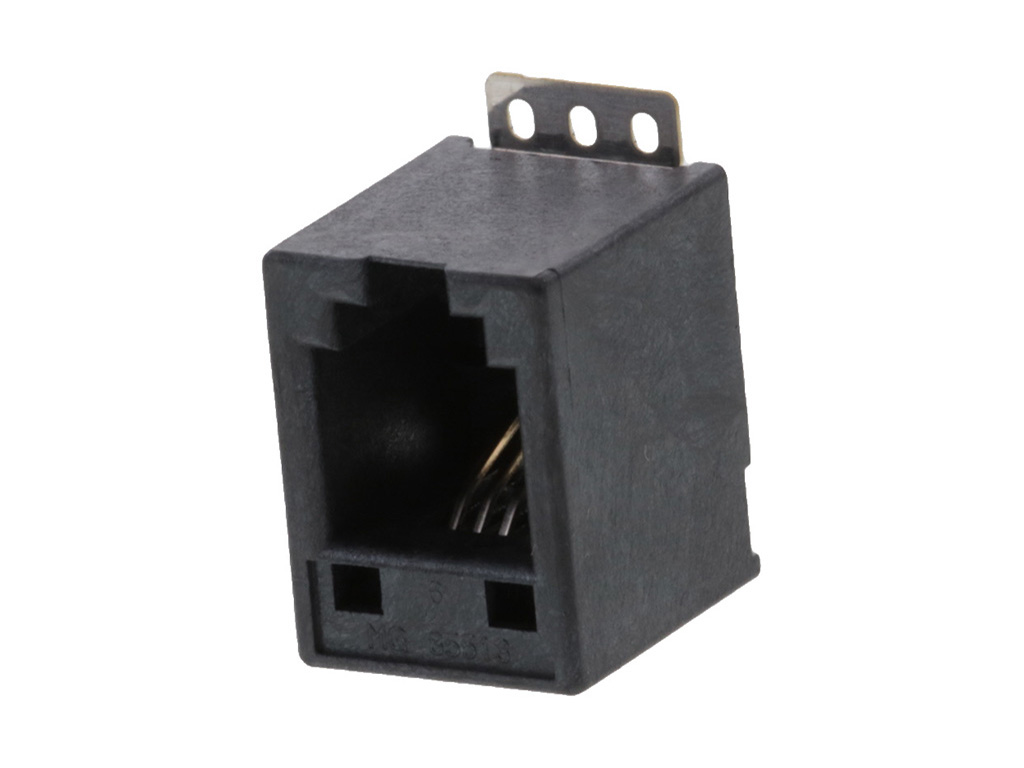

855135016 Modular Jack 4/4 by Molex
Modular Jack, Vertical, Top Entry, Surface Mount, 4/4, Low Profile, 13" Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85513-5016,
0855135016 |
Where to Buy
Prices starting from US$0.56
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.69
|
1,416
in stock
|
Buy Now |
|
Farnell
from US$1.18
|
1,416
in stock
|
Buy Now |
|
TME
from US$0.71
|
944
in stock
|
Buy Now |
|
Newark Electronics
from US$1.13
|
472
in stock
|
Buy Now |
|
RS
from US$0.96
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.07
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.32
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.03
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.97
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.56
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 4/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 12.70mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.940/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 4/4 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Cat 3 Mod Jack/Plug 855135016 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, JACK, 4P4C, 1PORT, SMT | Farnell |
| Connector: RJ9 | TME |
| Phone Connector, pcb Mount,4 Contacts, pin, surface Mount Terminal, guide Slot |Molex 85513-5016 | Newark Electronics |
| Molex 85513-5016 Modular Jack | RS |
| VERT. LOW PROF TRUE SMT JACK 4/4 13 INCH | Avnet America |
| 4/4 MOD JACK VERTICAL LOW PRO | TTI Europe |
| VERT. LOW PROF TRUE SMT JACK /4 13 INCH | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 855135016?
Additional datasheets, footprints and schematics for 855135016 are listed on our Part Details page. You can also find images and similar parts to 855135016 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 855135016 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 855135016 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 855135016 fall under?
The 855135016 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 855135016 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 855135016 you can contact the distributor directly for product support, shipping queries etc.
Is the 855135016 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 855135016 have stock available?
Authorised distributors including Conrad, Farnell, TME, Newark Electronics and RS have stock available or on a lead time for 855135016.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 855135016 often in real-time on the comparison pages.
What if I can't find stock of 855135016?
You can fill out our help required form which you can use to request a quote for 855135016 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
