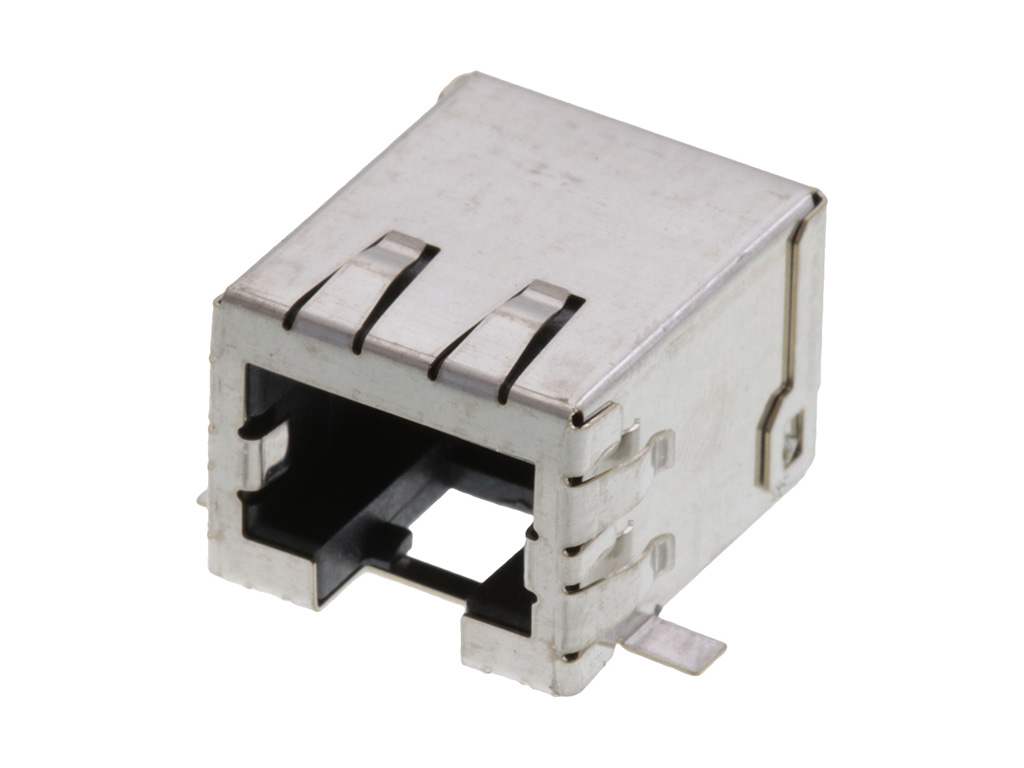

855437001 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Cat5e, Right-Angle, Surface Mount, 8/8, Shielded, 13" Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85543-7001,
0855437001 |
Where to Buy
Prices starting from US$1.58
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$2.16
|
10,191
in stock
|
Buy Now |
|
Farnell
from US$3.11
|
8,537
in stock
|
Buy Now |
|
Heilind Americas
from US$2.19
|
1,354
in stock
|
Buy Now |
|
RS
from US$3.42
|
1,172
in stock
|
Buy Now |
|
Newark Electronics
from US$3.00
|
953
in stock
|
Buy Now |
|
element14
from US$2.85
|
953
in stock
|
Buy Now |
|
Conrad
from US$1.90
|
872
in stock
|
Buy Now |
|
|
TTI Americas
from US$2.21
|
516
in stock
|
Buy Now |
|
TME
from US$2.18
|
11
in stock
|
Buy Now |
|
Avnet America
from US$2.45
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.97
|
0
in stock
|
Buy Now |
|
Compona
from US$1.79
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.58
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$4.04
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 13.00mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 5.174/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 8/8 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| MOD CONN, R/A RJ45 JACK, 8P8C, SMT | Farnell |
| HIGH SPEED RA SMT SHIELDED PD I | Heilind Americas |
| Molex 85543-7001 RJ45 Connector | RS |
| Jack, Smt, 8Way | Newark Electronics |
| JACK, SMT, 8WAY | element14 |
| Molex Cat 5 Jack SMT SHL 855437001 855437001 1 St. | Conrad |
| MDJCK 8/8 RA SMT SHLD PDNI | TTI Americas |
| Connector: RJ45 | TME |
| CAT5E HIGH SPEED RA SMT SHIELDED PDNI | Avnet America |
| 85543, CAT5, CAT5E RJ45 MODULAR JACK SOCKET, SHIELDED, RIGHT ANGLE, SMNT | RS Americas |
| MOLEX 85543-7001 Socket Square RJ 8p SMT | Compona |
