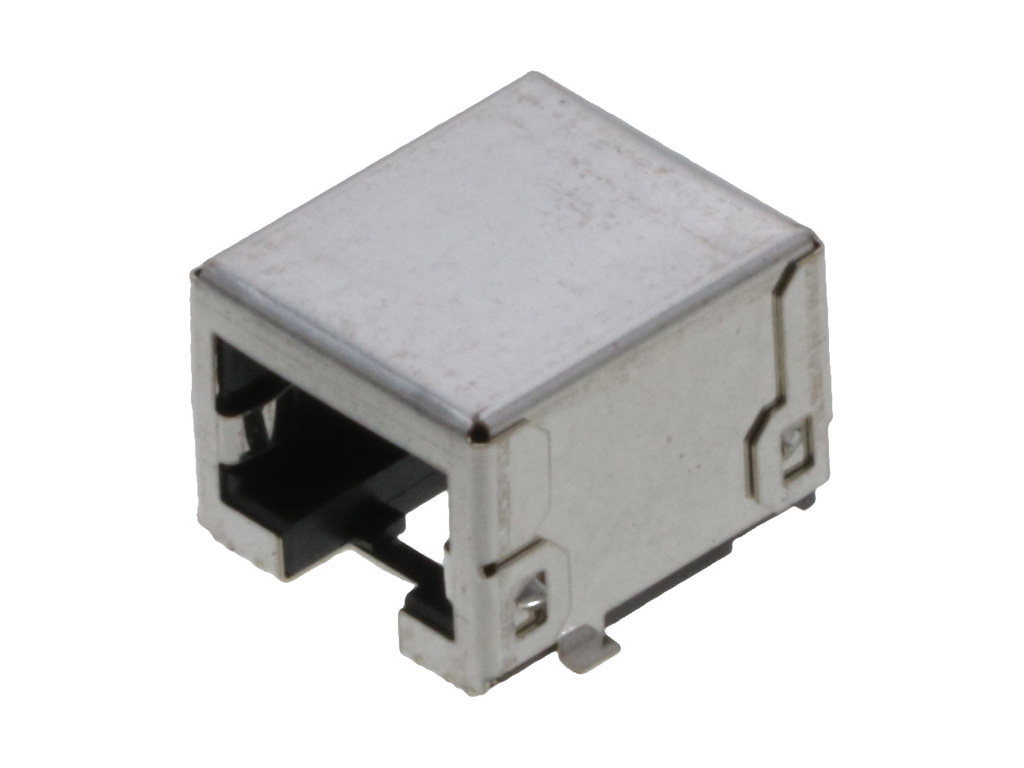

855437002 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Cat5e, Right-Angle, True Surface Mount, 8/8, Shielded, 13" Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85543-7002,
0855437002 |
Where to Buy
Prices starting from US$1.18
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$2.39
|
2,772
in stock
|
Buy Now |
|
Conrad
from US$3.44
|
1,848
in stock
|
Buy Now |
|
Farnell
from US$2.87
|
1,716
in stock
|
Buy Now |
|
RS Americas
from US$1.18
|
1,284
in stock
|
Buy Now |
|
Newark Electronics
from US$3.28
|
419
in stock
|
Buy Now |
|
element14
from US$3.71
|
419
in stock
|
Buy Now |
|
|
RS
from US$6.80
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.36
|
0
in stock
|
Buy Now |
|
TME
from US$1.87
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.29
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.24
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.11
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Pcb | Yes |
| Shielded | Yes |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 13.00mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 5.119/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 8/8 MODULAR JACK, CAT5E | TTI Europe |
| Molex Cat 5-7 Mod Jack/Plu 855437002 Buchse Schwarz 1 St. | Conrad |
| MODULAR AND ETHERNET CONNECTORS MODULAR | Farnell |
| CAT5E RA TSMT CAT5 JACK SHIELDED PDNI | RS Americas |
| Rj45 Connector, Jack, 8P8C, 1Port, Cat5E | Newark Electronics |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, CAT5E | element14 |
| Molex 85543-7002 RJ45 Connector | RS |
| CONN RA TSMT CAT5 JACK SHIELDED PDNI | Avnet America |
| Connector: RJ45 | TME |
| RA TSMT CAT5 JACK SHIELDE RA TSMT CAT5 JACK SHIELDE | Heilind Americas |
| MDJCK 8/8 RA SMT SHLD PDNI | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 855437002?
Additional datasheets, footprints and schematics for 855437002 are listed on our Part Details page. You can also find images and similar parts to 855437002 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 855437002 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 855437002 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 855437002 fall under?
The 855437002 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 855437002 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 855437002 you can contact the distributor directly for product support, shipping queries etc.
Is the 855437002 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 855437002 have stock available?
Authorised distributors including TTI Europe, Conrad, Farnell, RS Americas and Newark Electronics have stock available or on a lead time for 855437002.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 855437002 often in real-time on the comparison pages.
What if I can't find stock of 855437002?
You can fill out our help required form which you can use to request a quote for 855437002 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
