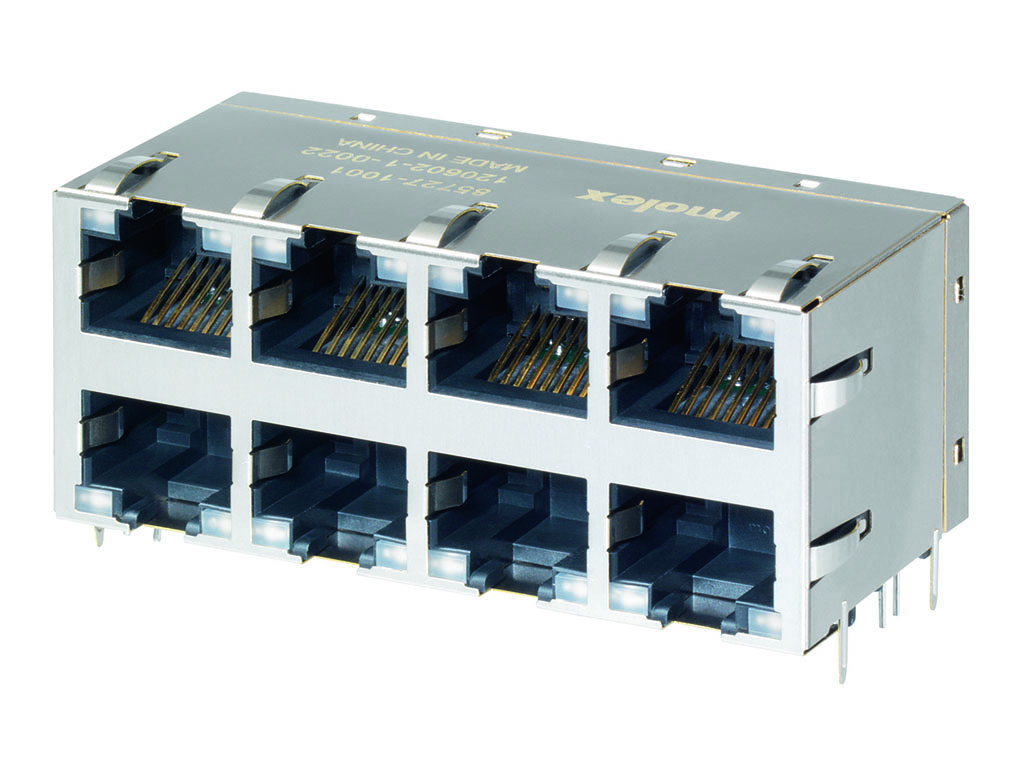

857271003 Magnetic Jack,RJ45 by Molex
Gigabit Magnetic Jack 2X4, LEDs Green/Yellow
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85727-1003,
0857271003 |
Where to Buy
Prices starting from US$41.04
Specifications
| Product Name | Magnetic Jack,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | Panel Ground Tab |
| Shielded | Yes |
| Voltage Maximum | 125V AC (RMS) |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 750 |
| Inverted Top Latch | Yes |
| Jack Height | 25.43mm |
| Light Pipes Leds | LEDs |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Net Weight | 43.360/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | N/A |
| Pcb Thickness Recommended | 2.20mm |
| Pitch Mating Interface | 1.02mm |
| Plating Min Mating | 0.762µm |
| Port Configuration | 2x4 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | 0° to +70°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | CAT 5, CAT 6 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MOD CONN, R/A JACK, 8P8C, TH | Farnell |
| Connector: RJ45 | TME |
| Molex 85727-1003 RJ45 Connector | RS |
| Connector, Rj45, Jack, 8Port, 8P8C, 2Row | Newark Electronics |
| GIGABIT MAGNETIC JACK 2X4 | TTI Europe |
| Modular Connectors / Ethernet Connectors GIG MAG 2X4 LED GRN-YLW | Sager |
