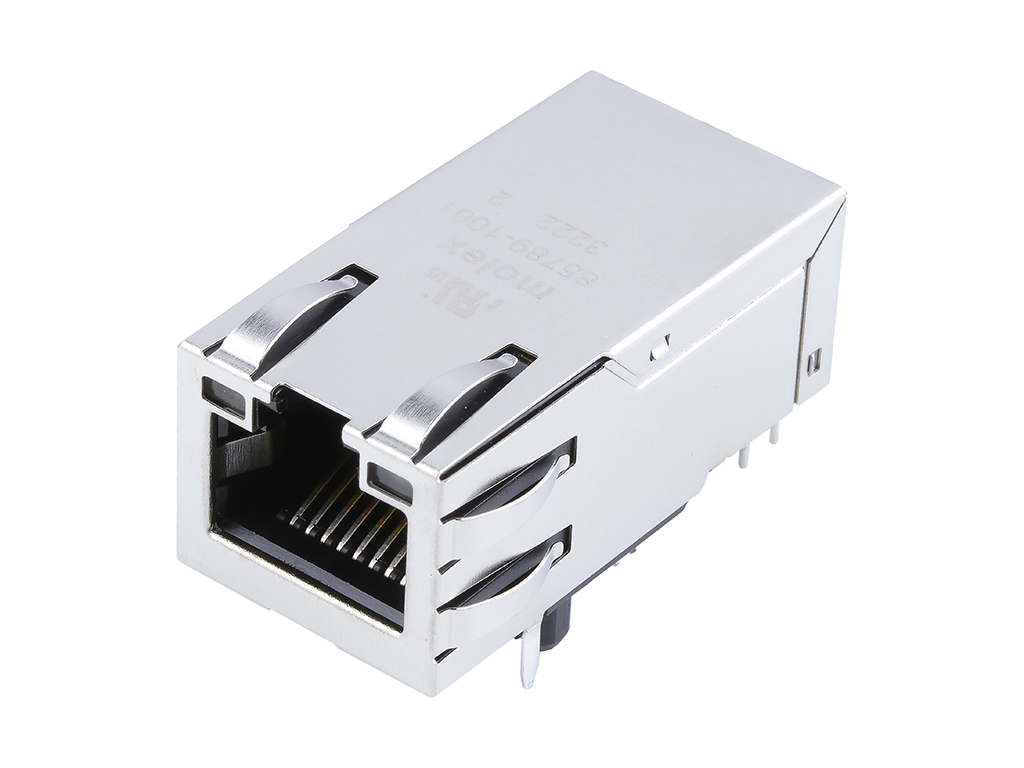

857891001 Magnetic Jack,MXMag,RJ45 by Molex
MXMag Gigabit Ethernet 8 Core PoE+ 30W Single-Port RJ45 Connector, 33.02mm Depth, 3.15mm Phy Pin Length, Right-Angle, Inverted Profile, with Shield Tabs, with Green/Green LEDs, Standard Temperature, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85789-1001,
0857891001 |
Where to Buy
Prices starting from US$2.31
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.31
|
1
in stock
|
Buy Now |
|
RS
from US$13.86
|
0
in stock
|
Buy Now |
|
element14
from US$10.03
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$7.97
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$8.10
|
0
in stock
|
Buy Now |
|
Farnell
from US$6.31
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$9.08
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Magnetic Jack,MXMag,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Voltage Maximum | 57V |
Physical |
|
|---|---|
| Color Resin | Black |
| Depth | 33.02mm |
| Durability Mating Cycles Max | 750 |
| Inverted Top Latch | Yes |
| Jack Height | 13.87mm |
| Keying To Mating Part | No |
| Light Pipes Leds | LEDs |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Net Weight | 9.422/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | Spring Tabs |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.270µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | 0° to +70°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Rj45 Connector, Jack, 8P8C, 1Port, Th | Newark Electronics |
| Molex 85789-1001 Connector | RS |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, TH | element14 |
| GGABT MAGJACK,POE+ ENBLD,30W GN/GN LED | Heilind Americas |
| POE PLUS ENABLED ICM 1X1 LED GRN GRN | Farnell |
| POE PLUS ENABLED 1X1 LED | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 857891001?
Additional datasheets, footprints and schematics for 857891001 are listed on our Part Details page. You can also find images and similar parts to 857891001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 857891001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 857891001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 857891001 fall under?
The 857891001 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 857891001 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 857891001 you can contact the distributor directly for product support, shipping queries etc.
Is the 857891001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 857891001 have stock available?
Authorised distributors including Newark Electronics, RS, element14, Heilind Americas and Heilind Europe have stock available or on a lead time for 857891001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 857891001 often in real-time on the comparison pages.
What if I can't find stock of 857891001?
You can fill out our help required form which you can use to request a quote for 857891001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
