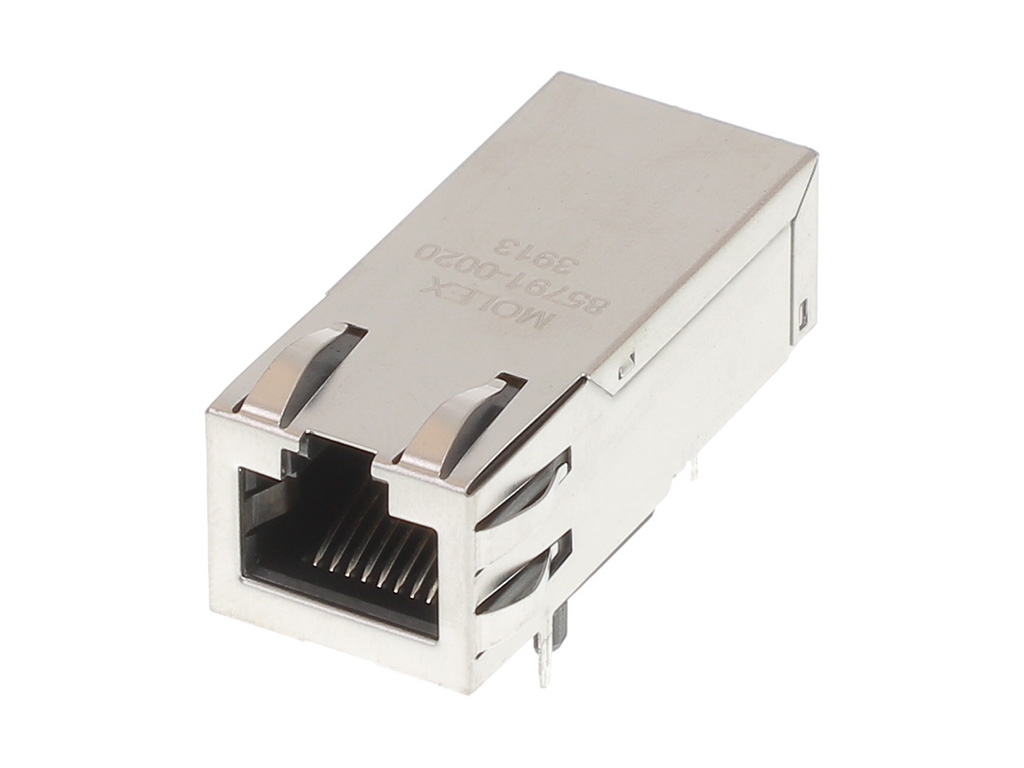

857910020 Magnetic Jack,MXMag,RJ45 by Molex
MXMag PD Integrated Gigabit Ethernet 8 Core PoE+ 30W Class 0 Single-Port RJ45 Connector, 39.00mm Depth, 3.15mm Phy Pin Length, Right-Angle, Inverted Profile, with Shield Tabs, Non-LED, Standard Temperature, Tray
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Unknown |
| Aliases: |
85791-0020,
0857910020 |
Specifications
| Product Name | Magnetic Jack,MXMag,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Voltage Maximum | 60V AC |
Physical |
|
|---|---|
| Color Resin | Black |
| Depth | 39.00mm |
| Durability Mating Cycles Max | 750 |
| Inverted Top Latch | Yes |
| Jack Height | 13.87mm |
| Keying To Mating Part | No |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Net Weight | 11.242/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | Spring Tabs |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Plating Min Mating | 0.762µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | 0° to +70°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
