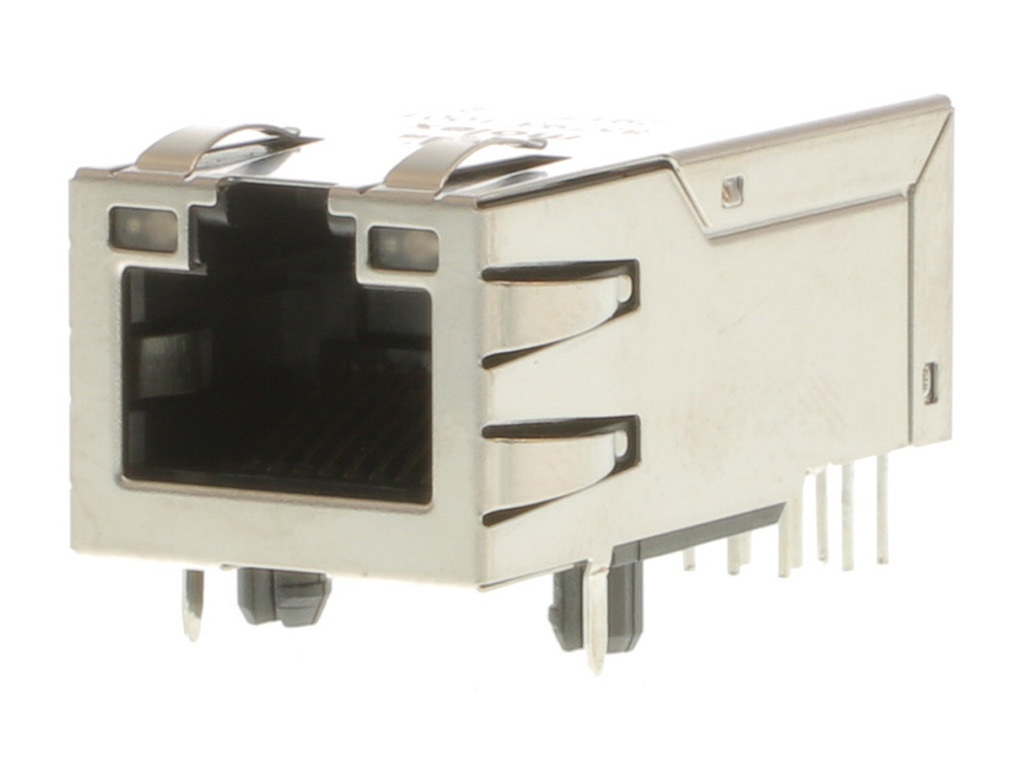

857931001 Magnetic Jack,MXMag,RJ45 by Molex
MXMag Gigabit Ethernet 8 Core Non-PoE Single-Port RJ45 Connector, 33.02mm Depth, 3.15mm Phy Pin Length, Right-Angle, Inverted Profile, with Shield Tabs, with Green/Green LEDs, Standard Temperature, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
85793-1001,
0857931001 |
Where to Buy
Prices starting from US$2.10
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$8.91
|
39
in stock
|
Buy Now |
|
Farnell
from US$8.35
|
39
in stock
|
Buy Now |
|
Newark Electronics
from US$2.10
|
26
in stock
|
Buy Now |
|
TTI Americas
from US$10.68
|
8
in stock
|
Buy Now |
|
Avnet America
from US$5.65
|
0
in stock
|
Buy Now |
|
RS Americas
from US$8.92
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$8.39
|
0
in stock
|
Buy Now |
|
Sager
from US$6.96
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$6.85
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$6.60
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Magnetic Jack,MXMag,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Voltage Maximum | 150V (RMS) |
Physical |
|
|---|---|
| Color Resin | Black |
| Depth | 33.02mm |
| Durability Mating Cycles Max | 750 |
| Inverted Top Latch | Yes |
| Jack Height | 13.87mm |
| Keying To Mating Part | No |
| Light Pipes Leds | LEDs |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Net Weight | 9.400/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | Spring Tabs |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.270µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | 0° to +70°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| RJ45 CONN, JACK, 8P8C, 1PORT, CAT5/5E | element14 |
| Rj45 Conn, Jack, 8P8C, 1Port, Cat5/5E | Newark Electronics |
| GIG MAG 1X1 LED GRN-GRN | TTI Americas |
| GIGE MAGNETIC ICM 1X1 LED GRN GRN | Avnet America |
| GIGE MAGNETIC ICM 1X1 LED | TTI Europe |
| Modular Connectors / Ethernet Connectors GIG MAG 1X1 LED GRN-GRN | Sager |
