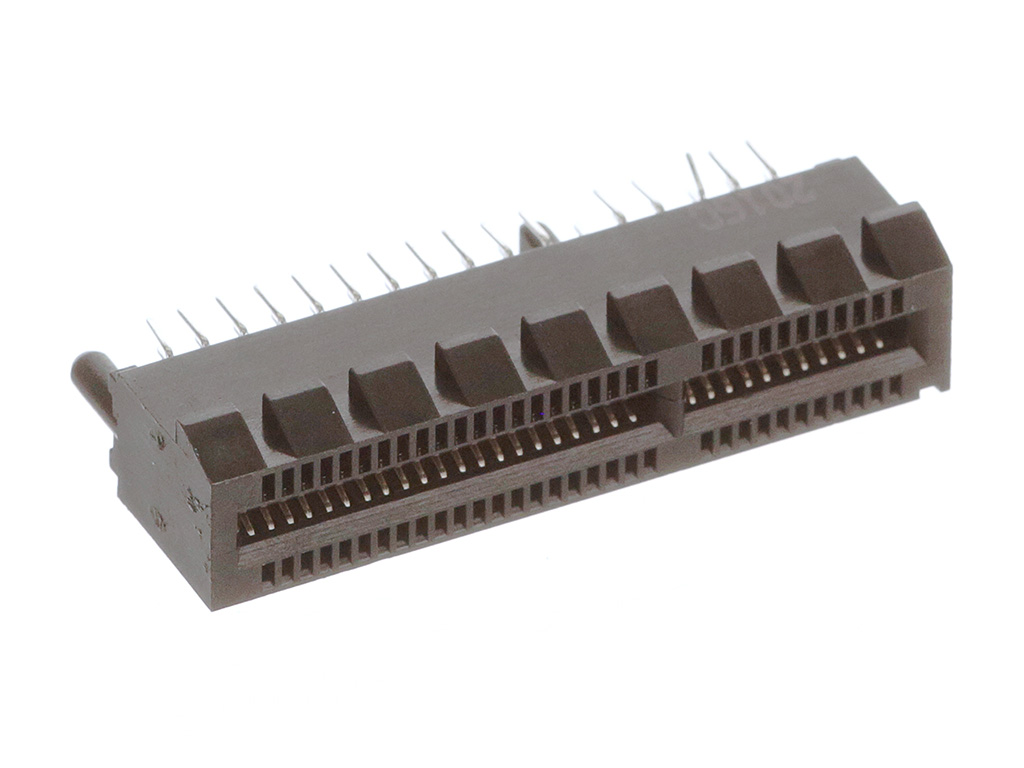

877159106 PCI Express by Molex
1.00mm Pitch, PCI Express Connector, 64 Circuits, Nylon 4/6 Glass-filled, Black Housing, Phosphor Bronze, 0.76µm Gold Soldertail, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
87715-9106,
0877159106 |
Where to Buy
Prices starting from US$1.51
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.36
|
861
in stock
|
Buy Now |
|
Farnell
from US$3.39
|
775
in stock
|
Buy Now |
|
Newark Electronics
from US$2.36
|
558
in stock
|
Buy Now |
|
element14
from US$3.23
|
133
in stock
|
Buy Now |
|
TME
from US$3.79
|
18
in stock
|
Buy Now |
|
RS
from US$4.52
|
0
in stock
|
Buy Now |
|
Compona
from US$2.84
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$2.99
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.51
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.68
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | PCI Express |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.1A |
| Data Rate | 8.0 Gbps |
| High Power Bay300a Or More | No |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 64 |
| Circuits Maximum | 64 |
| Durability Mating Cycles Max | 50 |
| Edge Card Thickness | 1.57mm |
| Entry Angle | Vertical (Top Entry) |
| Flammability | 94V-0 |
| Keying To Mating Part | Yes |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 3.864/g |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.54mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 0.762µm |
| Polarized To Mating Part | Yes |
| Power Signal Configuration | 64s - 0p |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex PCI-Express-Sockel 87715-9106 1 St. Bulk | Conrad |
| CARD EDGE CONN, DUAL SIDE, 64POS, SOLDER | Farnell |
| Pci Express Edgecard 64Ckt Ny46 Blk Phbr Rohs Compliant: Yes |Molex 87715-9106 | Newark Electronics |
| CARD EDGE CONN, PCIE, DUAL, 64POS, TH | element14 |
| Connector: for cards | TME |
| Molex 87715-9106 Edge Connector | RS |
| MOLEX 87715-9106 Plug PCIE 64p THT | Compona |
| PCI EXPRESS EDGECARD | TTI Europe |
| PCI EXPRESS EDGECARD 64CKT NY 6 BLK PHBR | Heilind Americas |
