877791001 Serial ATA by Molex

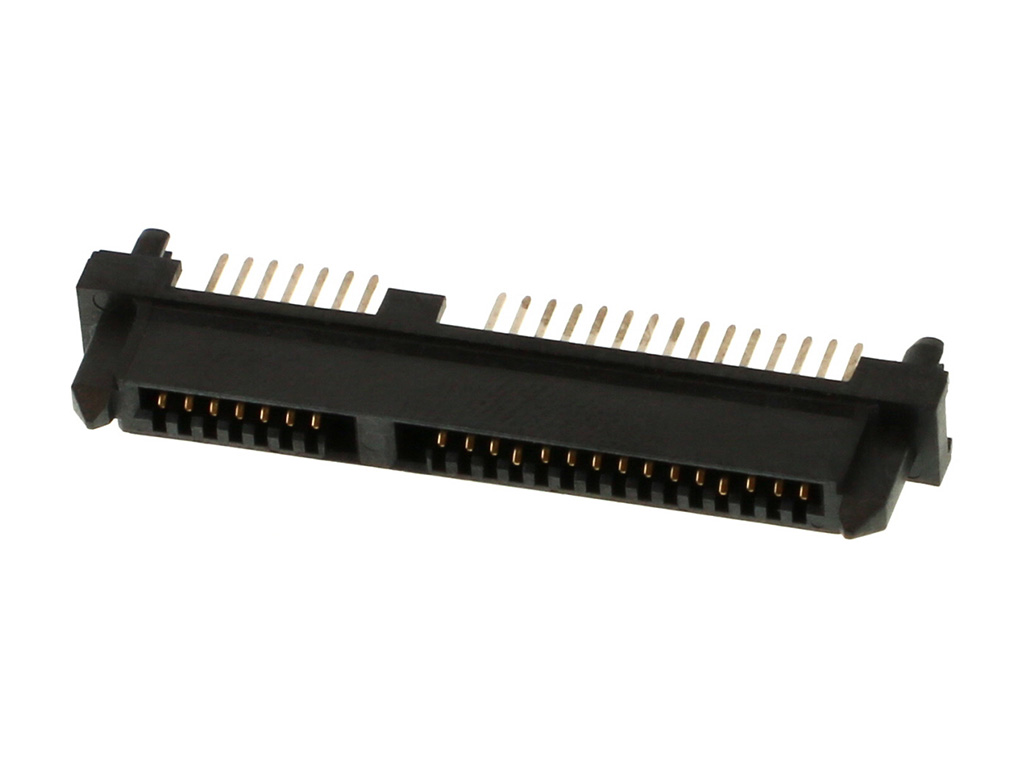

1.27mm Pitch Serial ATA Backplane Receptacle, Through Hole, Vertical, Standard Height, 0.76µm Gold (Au) Selective, 22 Circuits, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
87779-1001,
0877791001 |
Where to Buy
Prices starting from US$2.23
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$3.58
|
2,640
in stock
|
Buy Now |
|
|
TTI Europe
from US$4.95
|
2,430
in stock
|
Buy Now |
|
Farnell
from US$5.51
|
2,411
in stock
|
Buy Now |
|
Newark Electronics
from US$6.74
|
45
in stock
|
Buy Now |
|
element14
from US$5.72
|
45
in stock
|
Buy Now |
|
RS
from US$6.38
|
28
in stock
|
Buy Now |
|
TME
from US$6.58
|
1
in stock
|
Buy Now |
|
Offical Electronic
-
|
2
in stock
|
Buy Now |
|
Avnet America
from US$3.55
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$6.09
|
0
in stock
|
Buy Now |
|
Compona
from US$4.40
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.42
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.14
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.23
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Serial ATA |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 30V |
Physical |
|
|---|---|
| Circuits Loaded | 22 |
| Circuits Maximum | 22 |
| Durability Mating Cycles Max | 500 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 1.354/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 0.80mm, 2.50mm |
| Pc Tail Length | 3.45mm |
| Pitch Mating Interface | 1.27mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Power Signal Configuration | 15p - 7s |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
