901420010 C-Grid III by Molex

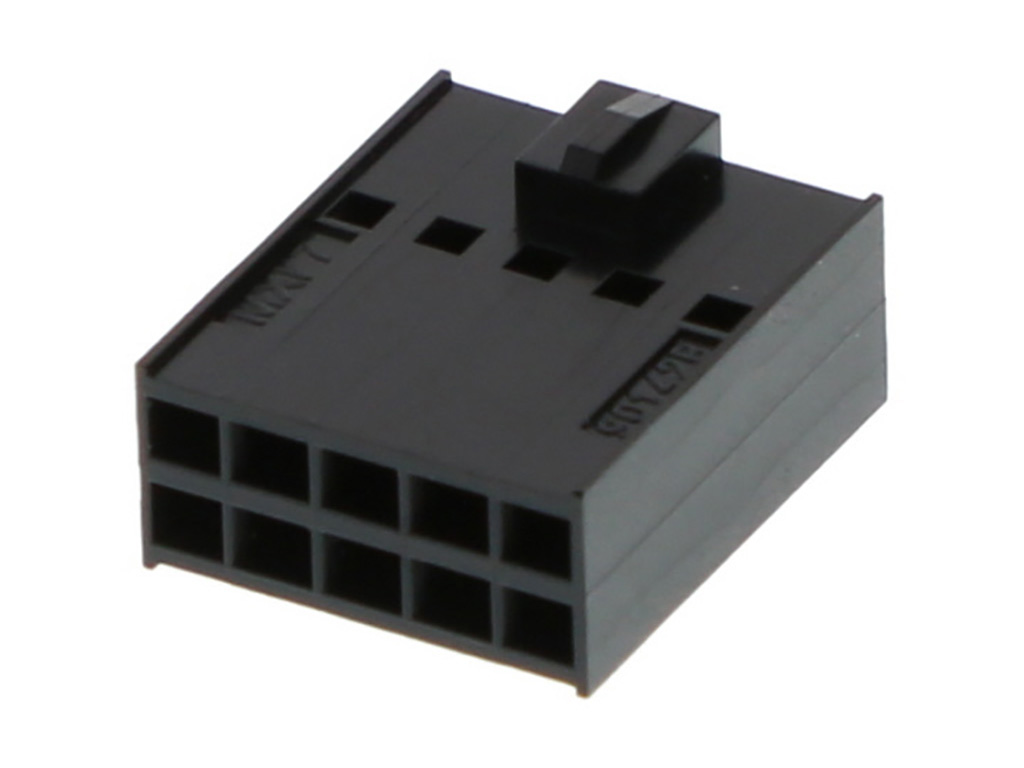

2.54mm Pitch C-Grid III Crimp Housing Dual Row, 10 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90142-0010,
0901420010 |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.54
|
143,554
in stock
|
Buy Now |
|
TTI Europe
from US$0.41
|
40,300
in stock
|
Buy Now |
|
Heilind Americas
from US$0.33
|
18,254
in stock
|
Buy Now |
|
element14
from US$0.45
|
11,397
in stock
|
Buy Now |
|
Newark Electronics
from US$0.41
|
10,983
in stock
|
Buy Now |
|
RS
from US$0.61
|
10,085
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.26
|
7,726
in stock
|
Buy Now |
|
TME
from US$0.30
|
3,011
in stock
|
Buy Now |
|
EME
from US$0.26
|
910
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.56
|
524
in stock
|
Buy Now |
|
Conrad
from US$0.21
|
524
in stock
|
Buy Now |
|
FDH Electronics
from US$0.33
|
100
in stock
|
Buy Now |
|
Offical Electronic
-
|
5,682
in stock
|
Buy Now |
|
Compona
from US$0.23
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.16
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 10 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | PPO |
| Net Weight | 0.700/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Ports | 0 |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, RCPT, 10POS, 2.54MM | Farnell |
| 2.54MM C-GRID III HOUSING 10CT | TTI Europe |
| C-GRID CRP CONN HSG DR FL POLZ | Heilind Americas |
| CONNECTOR, RCPT, 10POS, 2ROW, 2.54MM | element14 |
| C-Grid Crp Conn Hsg Dr Fl Polz 10Ckt Rohs Compliant: Yes |Molex 90142-0010 | Newark Electronics |
| Molex 90142-0010 Connector Housing | RS |
| Connector: wire-board | TME |
| Molex 901420010 C-grid Iii Socket Housing 10 Pins 2.54mm Pitch | Rapid Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 10 Rastermaß: 2.54 mm 901420010 1 St. Bag | Conrad |
| Placeholder | FDH Electronics |
| MOLEX 90142-0010 Female housing 10p black | Compona |
| C-GRID III 2.54MM HSG 2X05 | TTI Asia |
| 10P CRIMP HOUSING 2R C-GRID III | Rutronik |
