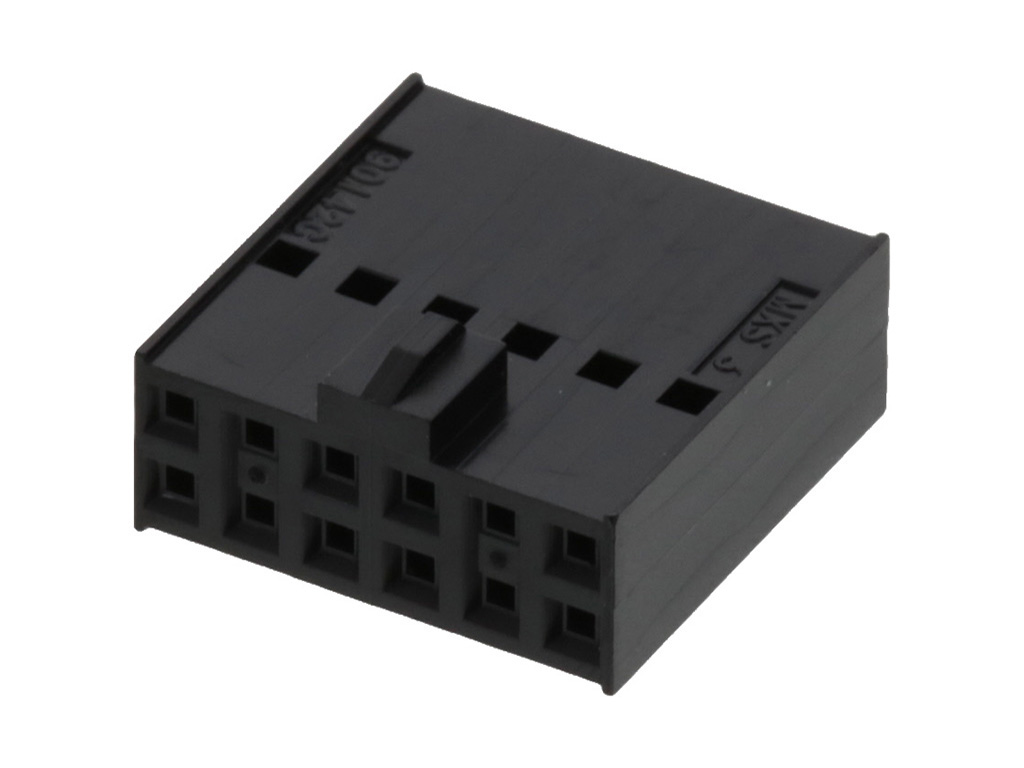

901420012 C-Grid III by Molex
2.54mm Pitch C-Grid III Crimp Housing Dual Row, 12 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90142-0012,
0901420012 |
Where to Buy
Prices starting from US$0.25
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.76
|
31,871
in stock
|
Buy Now |
|
TTI Europe
from US$0.40
|
10,200
in stock
|
Buy Now |
|
EME
from US$0.38
|
3,400
in stock
|
Buy Now |
|
element14
from US$0.64
|
3,174
in stock
|
Buy Now |
|
RS
from US$0.81
|
1,095
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.76
|
950
in stock
|
Buy Now |
|
Conrad
from US$0.92
|
950
in stock
|
Buy Now |
|
TME
from US$0.57
|
332
in stock
|
Buy Now |
|
FDH Electronics
from US$1.37
|
2
in stock
|
Buy Now |
|
Offical Electronic
-
|
3,385
in stock
|
Buy Now |
|
Newark Electronics
from US$0.67
|
0
in stock
|
Buy Now |
|
Compona
from US$0.27
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.25
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.28
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 12 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | PPO |
| Net Weight | 0.838/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Ports | 0 |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, RCPT, 12POS, 2.54MM | Farnell |
| 2.54MM C-GRID III HOUSING 12CT | TTI Europe |
| CONNECTOR, RCPT, 12POS, 2ROW, 2.54MM | element14 |
| Molex 90142-0012 Connector Housing | RS |
| Molex 901420012 C-grid Iii Socket Housing 12 Pins 2.54mm Pitch | Rapid Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 12 Rastermaß: 2.54 mm 901420012 1 St. Bag | Conrad |
| Connector: wire-board | TME |
| Placeholder | FDH Electronics |
| Connector, Rcpt, 12Pos, 2Row, 2.54Mm | Newark Electronics |
| MOLEX 90142-0012 Socket Square CGrid 12p Crimp without Contacts | Compona |
| C-GRID CRP CONN HSG DR FL POL 12CKT | Heilind Europe |
| C-GRID III 2.54MM HSG 2X06 | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 901420012?
Additional datasheets, footprints and schematics for 901420012 are listed on our Part Details page. You can also find images and similar parts to 901420012 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 901420012 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 901420012 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 901420012 fall under?
The 901420012 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 901420012 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 901420012 you can contact the distributor directly for product support, shipping queries etc.
Is the 901420012 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 901420012 have stock available?
Authorised distributors including Farnell, TTI Europe, EME, element14 and RS have stock available or on a lead time for 901420012.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 901420012 often in real-time on the comparison pages.
What if I can't find stock of 901420012?
You can fill out our help required form which you can use to request a quote for 901420012 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
