901420014 C-Grid III by Molex

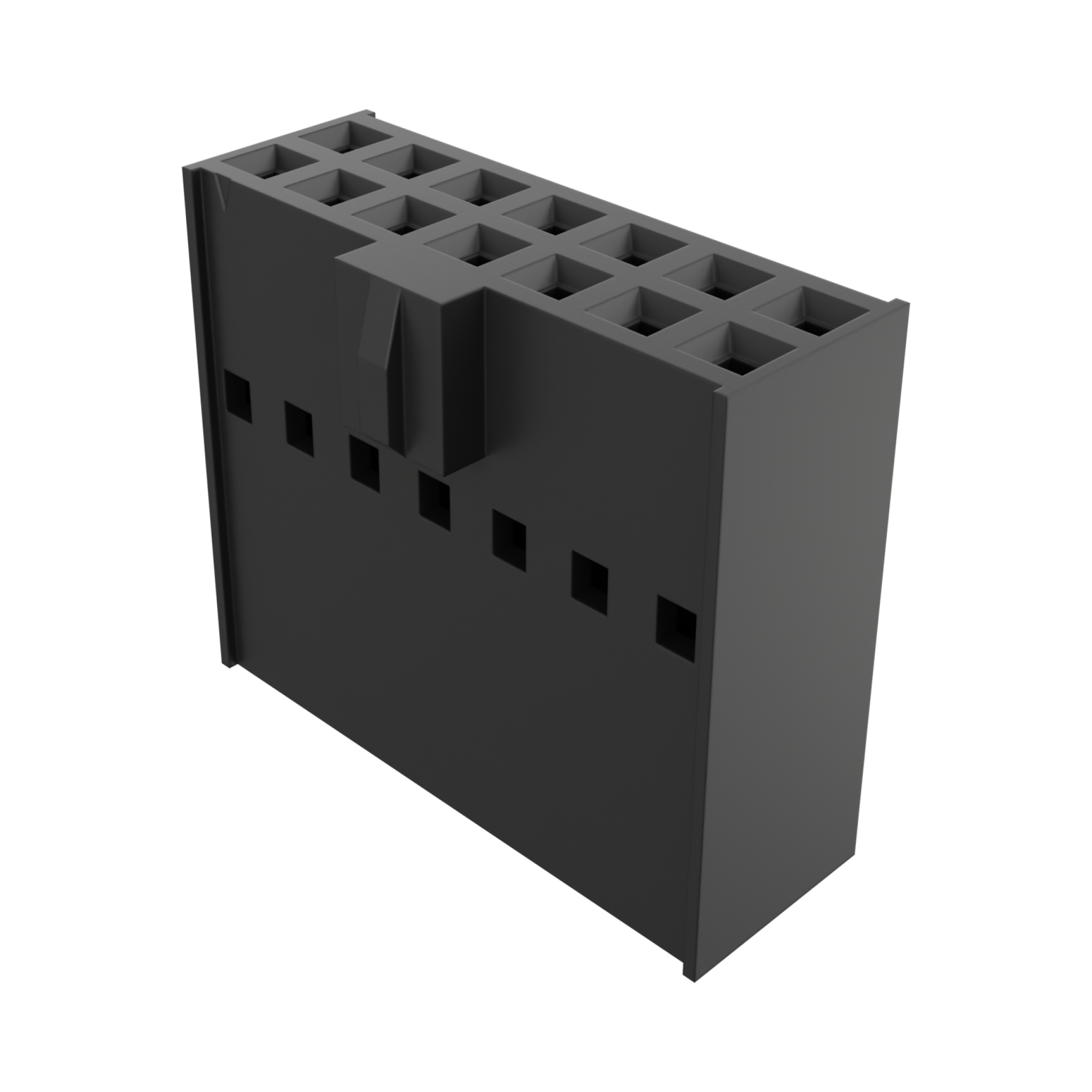

2.54mm Pitch C-Grid III Crimp Housing Dual Row, 14 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90142-0014,
0901420014 |
Where to Buy
Prices starting from US$0.28
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.62
|
11,885
in stock
|
Buy Now |
|
TTI Europe
from US$0.54
|
10,000
in stock
|
Buy Now |
|
RS Americas
from US$0.40
|
1,544
in stock
|
Buy Now |
|
Conrad
from US$0.38
|
913
in stock
|
Buy Now |
|
|
RS
from US$1.02
|
280
in stock
|
Buy Now |
|
EME
from US$0.99
|
200
in stock
|
Buy Now |
|
Newark Electronics
from US$0.57
|
190
in stock
|
Buy Now |
|
Offical Electronic
-
|
2,390
in stock
|
Buy Now |
|
Avnet America
from US$0.34
|
0
in stock
|
Buy Now |
|
TME
from US$0.45
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.28
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.43
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 14 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | PPO |
| Net Weight | 0.972/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Ports | 0 |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, RCPT, 14POS, 2ROW, 2.54MM | Farnell |
| 2.54MM C-GRID III HOUSING 14CT | TTI Europe |
| C-GRID III SERIES 2.54MM PITCH 14 WAY 2ROW FEMALE STRAIGHT PCB HOUSING 90142 | RS Americas |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 14 Rastermaß: 2.54 mm 901420014 1 St. Bag | Conrad |
| Molex 90142-0014 Connector Housing | RS |
| Connector, Rcpt, 14Pos, 2Row, 2.54Mm | Newark Electronics |
| Connector Housing, Friction Lock, C-Grid III 90142, Receptacle, 14 Ways, 2.54 mm | Avnet America |
| Connector: wire-board | TME |
| C-GRID CRP CONN HSG DR FL POL 14CKT | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 901420014?
Additional datasheets, footprints and schematics for 901420014 are listed on our Part Details page. You can also find images and similar parts to 901420014 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 901420014 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 901420014 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 901420014 fall under?
The 901420014 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 901420014 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 901420014 you can contact the distributor directly for product support, shipping queries etc.
Is the 901420014 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 901420014 have stock available?
Authorised distributors including Farnell, TTI Europe, RS Americas, Conrad and RS have stock available or on a lead time for 901420014.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 901420014 often in real-time on the comparison pages.
What if I can't find stock of 901420014?
You can fill out our help required form which you can use to request a quote for 901420014 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
