901420026 C-Grid III by Molex

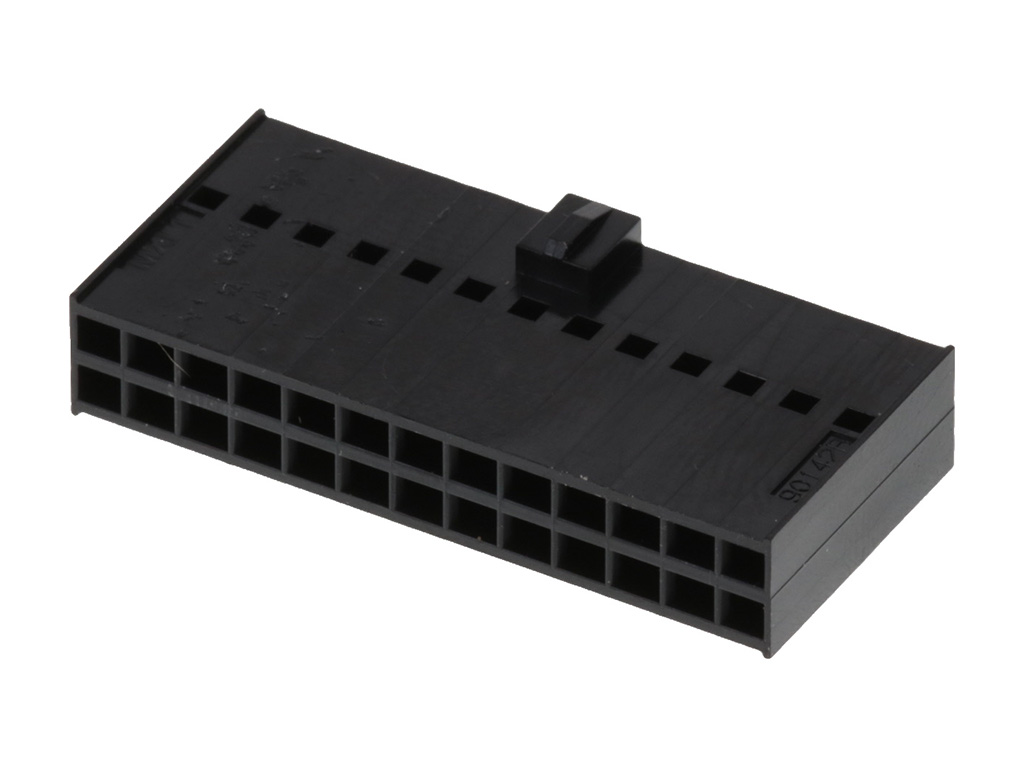

2.54mm Pitch C-Grid III Crimp Housing Dual Row, 26 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90142-0026,
0901420026 |
Where to Buy
Prices starting from US$0.43
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$1.18
|
2,818
in stock
|
Buy Now |
|
Farnell
from US$1.27
|
2,808
in stock
|
Buy Now |
|
RS
from US$2.43
|
402
in stock
|
Buy Now |
|
Newark Electronics
from US$1.29
|
289
in stock
|
Buy Now |
|
TTI Europe
from US$0.94
|
200
in stock
|
Buy Now |
|
EME
from US$0.66
|
116
in stock
|
Buy Now |
|
TME
from US$0.80
|
1
in stock
|
Buy Now |
|
Offical Electronic
-
|
878
in stock
|
Buy Now |
|
Rapid Electronics
from US$2.42
|
0
in stock
|
Buy Now |
|
Compona
from US$0.52
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.43
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.62
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 26 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | PPO |
| Net Weight | 1.777/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Ports | 0 |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, RCPT, 26POS, 2ROW, 2.54MM | element14 |
| Molex 90142-0026 Connector Housing | RS |
| Connector, Rcpt, 26Pos, 2Row, 2.54Mm | Newark Electronics |
| 2.54MM C-GRID III HOUSING 26CT | TTI Europe |
| Connector: wire-board | TME |
| Molex 901420026 C-grid Iii Socket Housing 26 Pins 2.54mm Pitch Black | Rapid Electronics |
| MOLEX 90142-0026 Socket Square CGrid 26p Crimp | Compona |
| C-GRID CRP CONN HSG DR FL POL 26CKT | Heilind Europe |
