901420038 C-Grid III by Molex

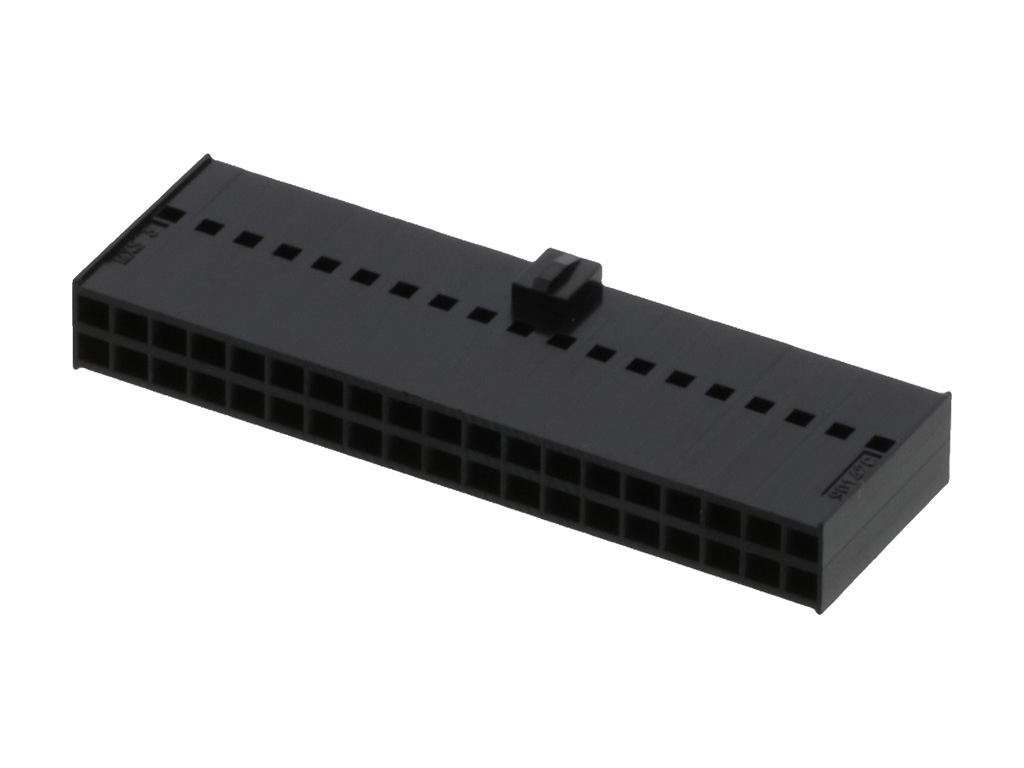

2.54mm Pitch C-Grid III Crimp Housing Dual Row, 38 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90142-0038,
0901420038 |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 38 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | PPO |
| Net Weight | 2.582/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Ports | 0 |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 38Pos, 2Row, 2.54Mm | Newark Electronics |
| Connector: wire-board | TME |
| C-GRID CRP CONN HSG DR FL POL 38CKT | Heilind Americas |
| HOUSING, 2.54MM, 38WAY | Farnell |
