901420050 C-Grid III by Molex

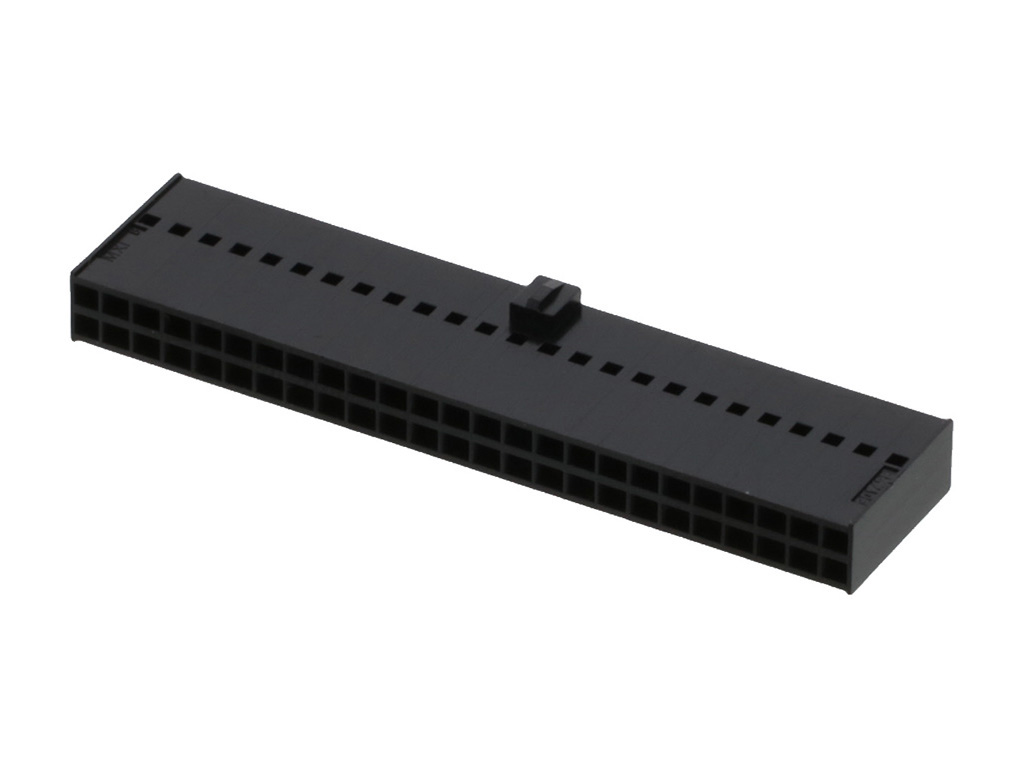

2.54mm Pitch C-Grid III Crimp Housing Dual Row, 50 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90142-0050,
0901420050 |
Where to Buy
Prices starting from US$1.32
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$3.32
|
6,180
in stock
|
Buy Now |
|
RS
from US$2.81
|
137
in stock
|
Buy Now |
|
TME
from US$1.94
|
67
in stock
|
Buy Now |
|
Newark Electronics
from US$2.62
|
14
in stock
|
Buy Now |
|
Heilind Americas
from US$2.43
|
9
in stock
|
Buy Now |
|
Offical Electronic
-
|
125
in stock
|
Buy Now |
|
Avnet America
from US$1.87
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.14
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.48
|
0
in stock
|
Buy Now |
|
Sager
from US$1.90
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.32
|
0
in stock
|
Buy Now |
|
EME
from US$1.89
|
0
in stock
|
Buy Now |
|
Carlton-Bates
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 50 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | PPO |
| Net Weight | 3.387/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Ports | 0 |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, RCPT, 50POS, 2.54MM | Farnell |
| Molex 90142-0050 Connector Housing | RS |
| Connector: pin strips | TME |
| Connector, Rcpt, 50Pos, 2Row, 2.54Mm | Newark Electronics |
| C-GRID CRP CONN HSG DR FL POL 50CKT | Heilind Americas |
| C-GRID III SERIES 2.54MM PITCH 50 WAY 2 ROW FEMALE STRAIGHT PCB HOUSING 90142 | RS Americas |
| 2.54MM C-GRID III HOUSING 50CT | TTI Europe |
| Headers & Wire Housings C-GRID III 2.54MM HSG 2X25 | Sager |
| Receptacle Socket Housing 50P | Carlton-Bates |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 901420050?
Additional datasheets, footprints and schematics for 901420050 are listed on our Part Details page. You can also find images and similar parts to 901420050 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 901420050 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 901420050 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 901420050 fall under?
The 901420050 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 901420050 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 901420050 you can contact the distributor directly for product support, shipping queries etc.
Is the 901420050 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 901420050 have stock available?
Authorised distributors including Farnell, RS, TME, Newark Electronics and Heilind Americas have stock available or on a lead time for 901420050.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 901420050 often in real-time on the comparison pages.
What if I can't find stock of 901420050?
You can fill out our help required form which you can use to request a quote for 901420050 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
