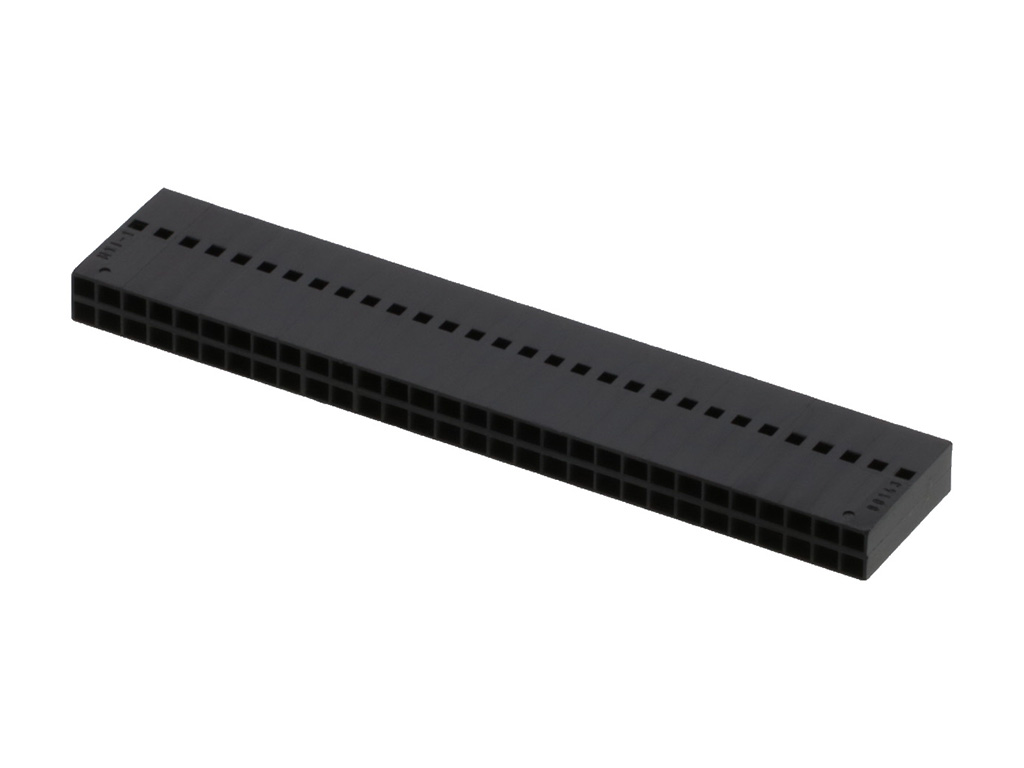

901430060 C-Grid III by Molex
2.54mm Pitch C-Grid III Modular Crimp Housing, Dual Row, 60 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90143-0060,
0901430060 |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Detail | No Voided Circuits |
| Circuits Maximum | 60 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Resin | PPO |
| Net Weight | 3.420/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | No |
| Ports | 1 |
| Stackable | Yes |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 60Pos, 2Row, 2.54Mm | Newark Electronics |
| CONNECTORS | Farnell |
| Molex Buchsengehäuse-Kabel 901430060 1 St. Bulk | Conrad |
| CGRID MODR CRP HSG DR WOPOL B TN 60CKT | Heilind Americas |
