901471104 C-Grid III by Molex

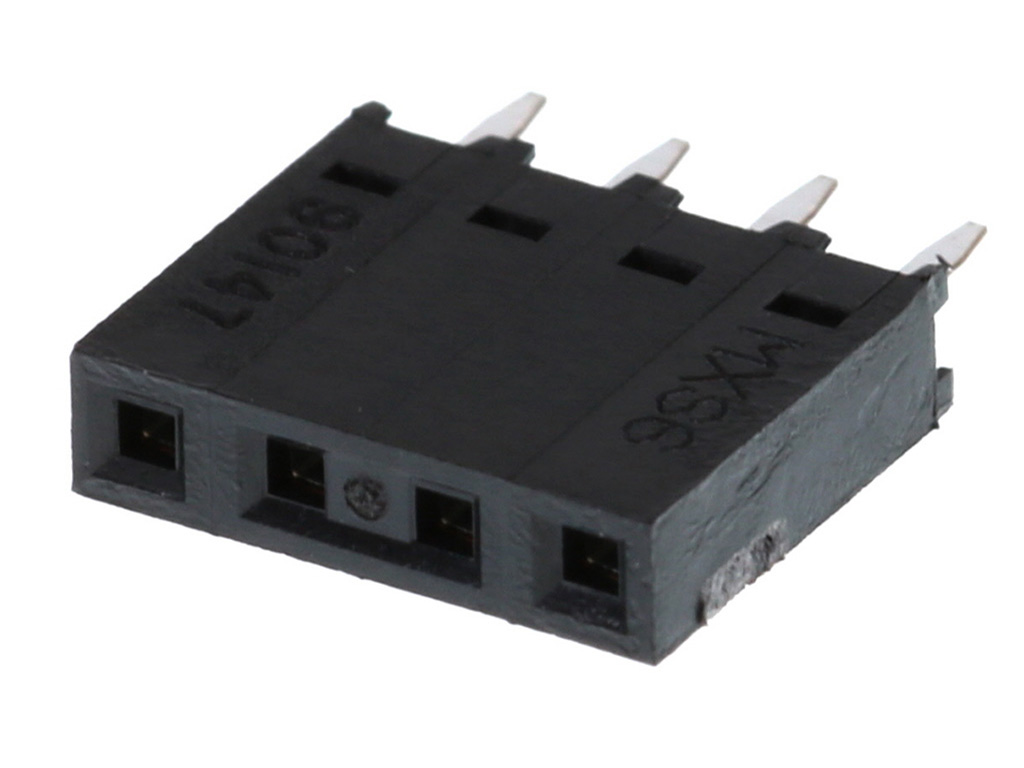

C-Grid III PC Board Connector, Single Row, Vertical, 4 Circuits, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90147-1104,
0901471104 |
Where to Buy
Prices starting from US$0.40
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.05
|
32,735
in stock
|
Buy Now |
|
Conrad
from US$1.68
|
31,955
in stock
|
Buy Now |
|
Farnell
from US$1.31
|
28,808
in stock
|
Buy Now |
|
TTI Europe
from US$0.77
|
2,860
in stock
|
Buy Now |
|
RS
from US$0.89
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.69
|
0
in stock
|
Buy Now |
|
TME
from US$0.75
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.92
|
0
in stock
|
Buy Now |
|
element14
from US$1.05
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.40
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Grounding To Pcb | No |
| Voltage Maximum | 350V |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.526/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.90mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Board-To-Board Connector, C-Grid 90147 Series, Through Hole, Header, 4, 2.54 Mm |Molex 90147-1104 | Newark Electronics |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 4 Rastermaß: 2.54 mm 901471104 1 St. Tube | Conrad |
| CONN, RCPT, 4POS, 1ROW, 2.54MM | Farnell |
| 2.54MM C-GRID PCB RCPTCL 4CKT | TTI Europe |
| Molex 90147-1104 PCB Header | RS |
| Conn Socket Strip F 4 POS 2.54mm Solder ST Thru-Hole Tube | Avnet America |
| Connector: pin strips | TME |
| CGRID PCB CONN SR VT TNA 4CKT | RS Americas |
| CONNECTOR, RCPT, 4POS, 1ROW, 2.54MM | element14 |
| C-GRID PCB CONN SR VT TN-A 4C T | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 901471104?
Additional datasheets, footprints and schematics for 901471104 are listed on our Part Details page. You can also find images and similar parts to 901471104 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 901471104 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 901471104 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 901471104 fall under?
The 901471104 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 901471104 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 901471104 you can contact the distributor directly for product support, shipping queries etc.
Is the 901471104 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 901471104 have stock available?
Authorised distributors including Newark Electronics, Conrad, Farnell, TTI Europe and RS have stock available or on a lead time for 901471104.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 901471104 often in real-time on the comparison pages.
What if I can't find stock of 901471104?
You can fill out our help required form which you can use to request a quote for 901471104 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
