901471105 C-Grid III by Molex

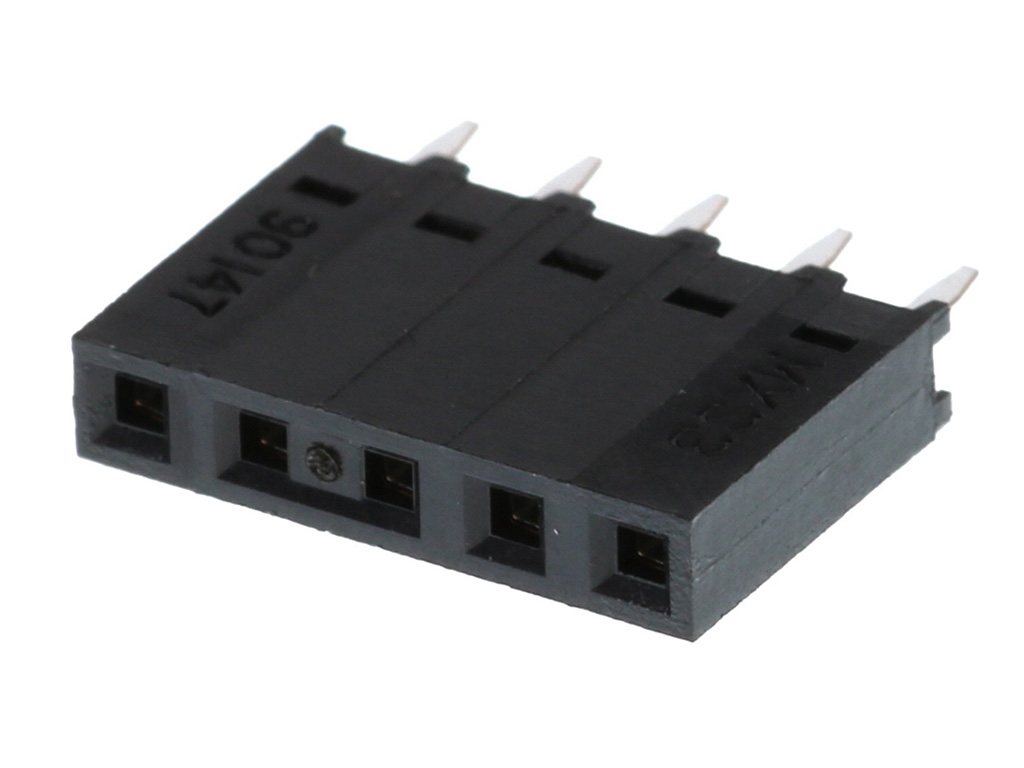

C-Grid III PC Board Connector, Single Row, Vertical, 5 Circuits, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90147-1105,
0901471105 |
Where to Buy
Prices starting from US$0.40
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.83
|
1,144
in stock
|
Buy Now |
|
Farnell
from US$1.41
|
1,030
in stock
|
Buy Now |
|
TME
from US$1.01
|
157
in stock
|
Buy Now |
|
Newark Electronics
from US$1.14
|
53
in stock
|
Buy Now |
|
element14
from US$1.09
|
53
in stock
|
Buy Now |
|
Offical Electronic
-
|
133
in stock
|
Buy Now |
|
RS
from US$0.90
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.79
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.03
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.40
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Grounding To Pcb | No |
| Voltage Maximum | 350V |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.436/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.90mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -55° to +105°C |
