901471107 C-Grid III by Molex

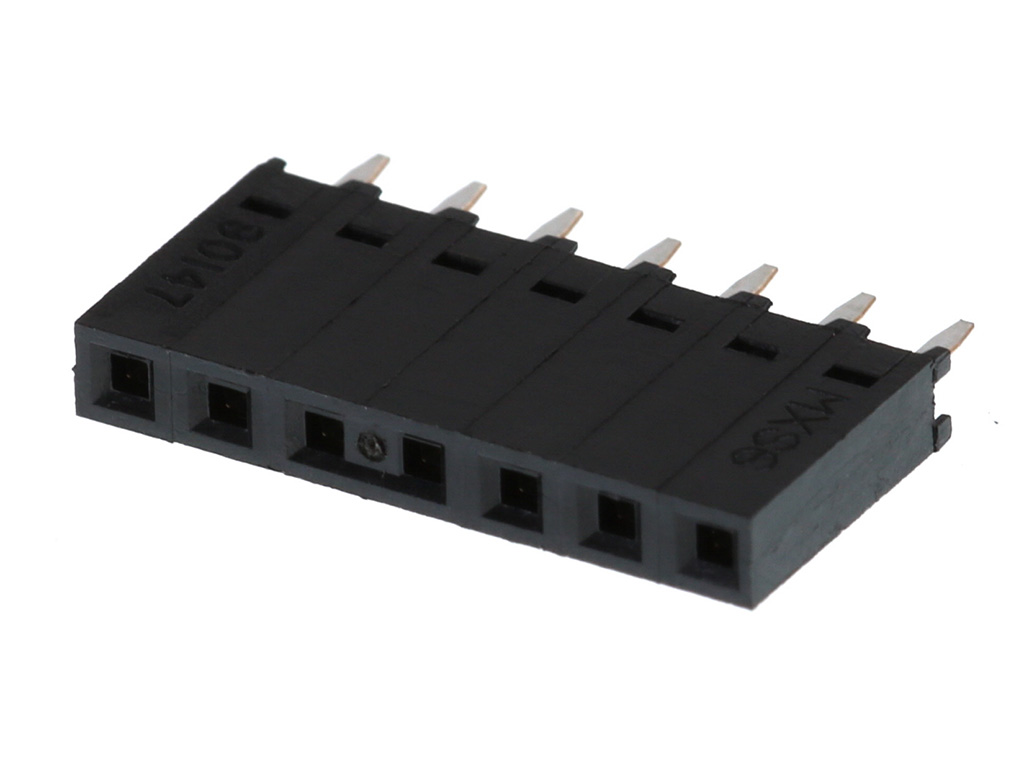

C-Grid III PC Board Connector, Single Row, Vertical, 7 Circuits, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90147-1107,
0901471107 |
Where to Buy
Prices starting from US$0.58
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$1.64
|
70
in stock
|
Buy Now |
|
Newark Electronics
from US$1.51
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.40
|
0
in stock
|
Buy Now |
|
element14
from US$1.32
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.21
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.58
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.38
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Grounding To Pcb | No |
| Voltage Maximum | 350V |
Physical |
|
|---|---|
| Circuits Loaded | 7 |
| Circuits Maximum | 7 |
| Color Resin | Black |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.607/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.90mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 901471107 PCB Connector | RS |
| Connector, Rcpt, 7Pos, 2.54Mm | Newark Electronics |
| CGRID PCB CONN SR VT TNA 7CKT | RS Americas |
| CONNECTOR, RCPT, 7POS, 2.54MM | element14 |
| C-GRID PCB CONN SR VT TN-A 7C T | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 901471107?
Additional datasheets, footprints and schematics for 901471107 are listed on our Part Details page. You can also find images and similar parts to 901471107 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 901471107 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 901471107 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 901471107 fall under?
The 901471107 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 901471107 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 901471107 you can contact the distributor directly for product support, shipping queries etc.
Is the 901471107 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 901471107 have stock available?
Authorised distributors including RS, Newark Electronics, RS Americas, element14 and Heilind Americas have stock available or on a lead time for 901471107.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 901471107 often in real-time on the comparison pages.
What if I can't find stock of 901471107?
You can fill out our help required form which you can use to request a quote for 901471107 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
