901471108 C-Grid III by Molex

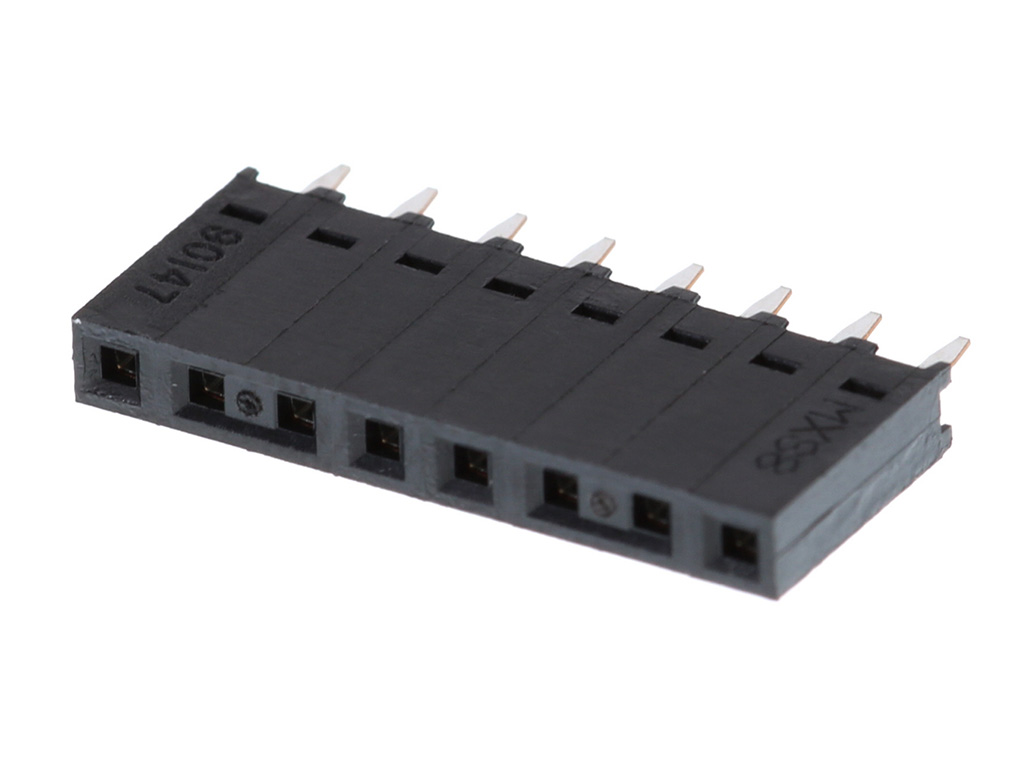

C-Grid III PCB Receptacle, 2.54mm Pitch, Single Row, Vertical, Shrouded, 8 Circuits, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90147-1108,
0901471108 |
Where to Buy
Prices starting from US$0.72
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.93
|
312
in stock
|
Buy Now |
|
TME
from US$1.74
|
207
in stock
|
Buy Now |
|
Heilind Americas
from US$1.96
|
13
in stock
|
Buy Now |
|
element14
from US$1.53
|
4
in stock
|
Buy Now |
|
Farnell
from US$2.35
|
4
in stock
|
Buy Now |
|
RS
from US$1.56
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$2.01
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.81
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.72
|
0
in stock
|
Buy Now |
|
EME
from US$1.02
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 350V AC/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.693/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.90mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 1.000µm |
| Plating Min Termination | 1.000µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 2.54MM C-GRID PCB RCPTCL 8CKT | TTI Europe |
| Connector: pin strips | TME |
| C-GRID PCB CONN SR VT TN-A 8C T | Heilind Americas |
| CONN, RCPT, 8POS, 1ROW, 2.54MM | element14 |
| Molex 90147-1108 PCB Socket | RS |
| Connector Systems:Board-To-Board | Newark Electronics |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 8 Rastermaß: 2.54 mm 901471108 1 St. Tube | Conrad |
